• GG-350 New design compact all-in-one rotary capping machine

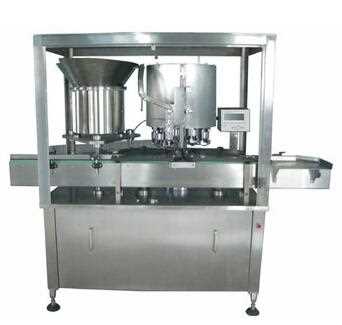

GG-350 New design compact all-in-one rotary capping machine

Diameter of cap: 20~80mm; Height of cap: 10~35mm; Quantity of capping head: 9;

Product Details

Quick Details

Description

  • Type: Capping Machine
  • Condition: New
  • Application: Beverage, Chemical, Commodity, Food, Medical
  • Driven Type: Electric
  • Automatic Grade: Automatic
  • Voltage: 380/220V
  • Power: 2000w
  • Packaging Type: Bottles
  • Packaging Material: Wood
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: SQUARESTAR
  • Model Number: GG-350
  • Dimension(L*W*H): 2200*950*1800mm
  • Weight: 600kg
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Capacity: ≤350 bottles/min
  • Diameter of bottle: 40~100mm(Based on requirement)
  • Height of bottle: 80~280mm
  • Cap feeding type: Vibrator
  • Application type: Bottle capping machine
  • Warranty period: 1 year
  • Framework material: SUS304 stainless steel
  • Diameter of cap: 20~80mm
  • Height of cap: 10~35mm
  • Quantity of capping head: 9



l         Capping speed up to 200 CPM

l         One button to adjust height

l         Wide applicability for various caps and bottles

l         Auto stop and alarm when lack of cap

l         Stainless Frame

l         3 sets of tightening discs

l         No-tool adjustment

l         Choice of various types of cap feeders



Model

Rotary capping machine

Maximum capping speed

350 bottles/min

Diameter of bottle

40~100mm

Height of bottle

80~280mm

Diameter of cap

20~80mm

Height of cap

10~35mm

Power supply

2kw, 380/220v, 50~60Hz

Pneumatic (air-operated) source

0.6Mpa clean and stable compressed air

Quantity of capping head

9



GG-350 New design compact all-in-one rotary capping machine

Company Profile

Established in 1994, Squarestar Machinery Equipment (Shanghai) Co., Ltd. manufactures pressure sensitive labelers. In the past years, our company has extended business to become a supplier of complete tablet and capsule bottling lines, including bottle unscramblers, counting and filling machines, cotton or desiccant inserters, cappers, induction sealers, labelers and cartoning machines. We also provide a complete solution to meet a variety of requirements from customers. Moreover, we supply liquid fillers and conveyor systems.

Currently, 70% of our customers are in the pharmaceutical and cosmetics fields. The balance is in the food industry. All designs and manufactures are done in our plant in Shanghai. We have a professional team to provide machinery proposals and after-sales service. Our company is currently well-known throughout China as one of the leading manufacturers in packaging business. In domestic market, we are the market leader of bottling lines, especially labelers. There are more than one thousand clients in over 200 cities using our products.

Our products cover high-end segment which adopts advanced control systems with high speed and perfect designs. The low-end products are cost effective and valuable. We also provide training, on-site installation, document support and good after-sales service. We can customize products according to specialized needs of customers.

We promise to supply high quality products with favorable prices to satisfy customers. Please feel free to contact us for further information.
