• DC-20 Multifunctional semi-automatic manual capping machine

DC-20 Multifunctional semi-automatic manual capping machine

Frame material: aluminium alloy and stainless steel; Cap feeding mode: manually; Application type: manual capping machine;

Product Details

Quick Details

Description

  • Type: Capping Machine
  • Condition: New
  • Application: Beverage, Chemical, Commodity, Food, Medical
  • Driven Type: Electric
  • Automatic Grade: Semi-Automatic
  • Voltage: 380/220V
  • Power: 800W
  • Packaging Type: Bottles
  • Packaging Material: Plastic
  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: SQUARESTAR
  • Model Number: DC-20
  • Dimension(L*W*H): 600*400*550mm
  • Weight: 30KG, 35kg
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Capacity: 20~30 b/m
  • Diameter of cap: 20~60mm
  • Screwing wheel number: 4
  • Motor number: 2
  • Frame material: aluminium alloy and stainless steel
  • Cap feeding mode: manually
  • Application type: manual capping machine



1. The main mechanical and electrical boxes and 304 series stainless steel support frame,

floor and body constituted by the oxidation of aluminum;

2. The motor uses double motors;

3. Digital display panel, capping time, capping times and intervals can be adjusted;

4. There is a foot control switch; semi-automatic convertible;

Model

DC-20  manual capping machine

Capacity

20~30 bottles/min

Dimension

600*400*550mm

Diameter of cap

20~60mm

Screwing wheel number

4

Motor number

2

Power supply

220/380v, 800w, 50~60Hz(Optional)

Weight

35kg

DC-20 Multifunctional semi-automatic manual capping machine

Company Profile

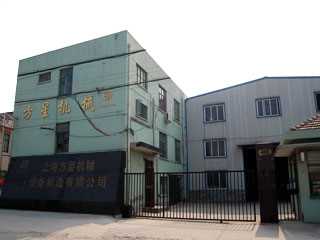

Established in 1994, Squarestar Machinery Equipment (Shanghai) Co., Ltd. manufactures pressure sensitive labelers. In the past years, our company has extended business to become a supplier of complete tablet and capsule bottling lines, including bottle unscramblers, counting and filling machines, cotton or desiccant inserters, cappers, induction sealers, labelers and cartoning machines. We also provide a complete solution to meet a variety of requirements from customers. Moreover, we supply liquid fillers and conveyor systems.

Currently, 70% of our customers are in the pharmaceutical and cosmetics fields. The balance is in the food industry. All designs and manufactures are done in our plant in Shanghai. We have a professional team to provide machinery proposals and after-sales service. Our company is currently well-known throughout China as one of the leading manufacturers in packaging business. In domestic market, we are the market leader of bottling lines, especially labelers. There are more than one thousand clients in over 200 cities using our products.

Our products cover high-end segment which adopts advanced control systems with high speed and perfect designs. The low-end products are cost effective and valuable. We also provide training, on-site installation, document support and good after-sales service. We can customize products according to specialized needs of customers.

We promise to supply high quality products with favorable prices to satisfy customers. Please feel free to contact us for further information.
