Quick Details
Description
- Brand Name:Care
- Model Number:SHZ4-100X4500

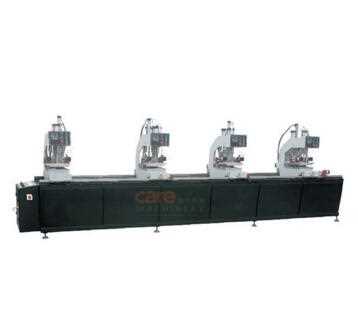

- Product name:Four Head UPVC Window Making Machine Welding Machine
- Application:Weld Upvc Window
- Input Power:4.5kw
- Power supply:380V 50Hz
- Air pressure:0.5-0.8MPa
- Welding scale:100x120mm
- Welding length:400-4500mm
- Weight:2000kg
PVC window welding machine is used for welding and fabrication of PVC/UPVC window frame. According to various processing capacity and investment, there are single head, double head, triple head and four head welder for choice.
1,Suitable for welding common PVC profile, color coated PVC profile and laminated PVC profile.
2,Adopt programmable logic controller (PLC) ensures the machine running more stable and reliable.
3,Double pressing function ensures higher welding strength.
4,The pressure of front and back clamper is adjusted separately, so as to improve the planeness of the welding corner
5,The heads are operated individually, together.
6,No. 2,3,4 head can move horizontally, so that realize various kinds of welding combination.
7,The fourth head can be used for welding variable angle with the special mold and the angle range from 30°~180°.
8,Professional mold configuration, can provide the design for different profiles ensure the welding quality. (optional)
9,Welding seam is about 0.10-0.15mm.
10,single head, double head and triple head welding machine available.
|
Parameters of Care PVC welding machine
|
|
Options
|
single head
|
double head
|
triple head
|
four head
|
|
Power supply
|
380V 50Hz 3P (or customized)
|
|
Total power
|
1.2KW
|
2.5KW
|
3.5KW
|
4.5KW
|
|
Air pressure
|
0.5-0.8MPa
|
|
Welding scale (WxHxL)
|
120x120x1800mm
|
120x120x3500mm
|
120x120x3500mm
|
120x120x4500mm
H=170mm customized
|
|
Dimension
L×W×H
|
960x900x1460mm
|
4300x900x1650mm
|
4300x900x1650mm
|
5300x900x1650mm
|
Shandong Care Machinery Technology Co., Ltd. is a comprehensive enterprise, specializing in manufacturing, sales, technical service and solution design of window processing facilities. Our main products include insulating glass production line and aluminum, PVC window processing machines.
We are quality conscious company, and it's just our origin to supply customers qualified machines. We are always trying to be the "Solution Expert of Window Processing Facilities". We not only supply complete window processing facilities, but our professional engineer team also provide right facility configuration, accordingly customers' various production requirements and estimated investment. And we'll provide essential industrial design and technical guidance as well.
We "Care What You Care", and supply products and service beyond expectation.
