Quick Details
Description
- Brand Name:Care
- Model Number:LJZ2-CNC-500X4200
- Product name:CNC Aluminum Window Profile Cutting Saw Machine
- Application:Window Making Machine
- Input Power:4.4 KW
- Power supply:380V 50Hz
- Function:Cut Aluminium Profile
- Rotating rate:3100r/min
- Blade size:D=500mm
- Cutting scale:135x300mm
- Cutting length:400-4200mm
- Cutting angle:45 / 90 degree

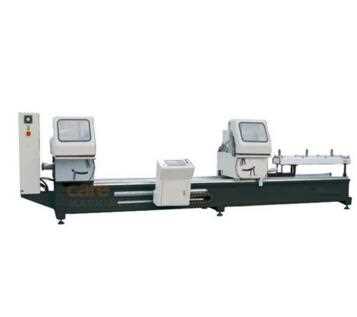

Double-head CNC Aluminum Window Profile Cutting Saw Machine is used for cutting of aluminum and PVC/UPVC profile. The cutting saw could cut 45°and 90°edge, and common type and digital display type available. And different cutting scales could be customized as per requirements.
1, Used for cutting of aluminum and PVC profiles;
2, CNC controlling system, achieve various profiles automatic cutting off;
3, Adopt airdraulic damping cylinder, ensure uniform speed feeding and smooth operation;
4, High accuracy main spindle and saw blade rotate smoothly;
5, Color touching display interface;
6, Feeding system adopts imported linear guide pair, with high accuracy and stability;
7, Optional 45° and 90°cutting;
8, Equipped with Japan imported blade;
Power: 4.4kw
Voltage: 380V/50HZ
Air pressure: 0.5-0.8MPa
Rotation rate: 3100r/min
Saw size: D=500mm d=30mm
Cutting scale: 135x300x(400-4200)mm (WxHxL)
Shandong Care Machinery Technology Co., Ltd. is a comprehensive enterprise, specializing in manufacturing, sales, technical service and solution design of window processing facilities. Our main products include insulating glass production line and aluminum, PVC window processing machines.
We are quality conscious company, and it's just our origin to supply customers qualified machines. We are always trying to be the "Solution Expert of Window Processing Facilities". We not only supply complete window processing facilities, but our professional engineer team also provide right facility configuration, accordingly customers' various production requirements and estimated investment. And we'll provide essential industrial design and technical guidance as well.
We "Care What You Care", and supply products and service beyond expectation.
