Quick Details
Description
- Place of Origin:Shandong, China (Mainland)
- Brand Name:DEMAC
- Model Number:LJZ2-450x3600
- After-sales Service Provided:Engineers available to service machinery overseas
- Power supply:Made to order
- Motor power:2*1.5KW
- Motor rotary speed:3400r/min
- Operation air pressure:0.5~0.8Mpa
- Cutting size:450~3600mm
- Cutting range:Height Max 90mm, Width Max. 350mm
- Air consumption:200L/min
- Cutting angle:45°
- Saw blade specification:450mmx3.5mmx30mm, Z=80
Specification:

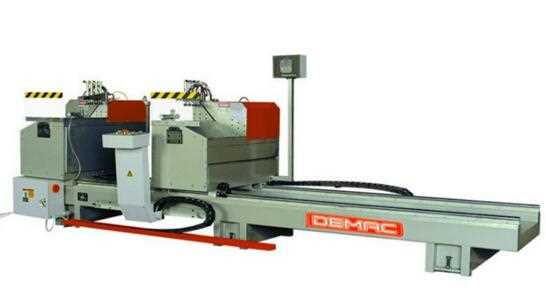

Used for aluminum profile 45° angle cutting.
Linear bearing moving parts ensure a smooth cutting head moving.
Stable and high quality cutting
Hydro-pneumatic driving system gives stable feeding.
Especially for 45° angle cutting and large capacity of multi-profiles cut in one cycle.
Technical Parameter:
|
Power supply
|
Made to order
|
|
Motor power
|
2*1.5KW
|
|
Motor rotary speed
|
3400r/min
|
|
Operation air pressure
|
0.5~0.8Mpa
|
|
Cutting size
|
450~3600mm
|
|
Cutting range
|
Height Max 90mm, Width Max. 350mm
|
|
Air consumption
|
200L/min
|
|
Cutting angle
|
45°
|
|
Feeding speed
|
Stepless timing 0~3m/min
|
|
Saw blade specification
|
Φ450mm×3.5mm×φ30mm Z=80
|
|
Dimension
|
460mm×1500mm×1500m
|
|
Weight
|
1700kg
|
DEMAC is a Chinese company operating with great success, for many years' experience in manufacturing a large range of machinery. The high quality products are used for Aluminum and PVC windows and doors, Curtain wall, and also for any kinds of industries related to Aluminum.
DEMAC is located in Jinan, a booming city in North of China, which is 400km in the south of Beijing
DEMAC has made many changes, introducing new equipment and technology innovation for the production, and always enlarging company scale.
Nowadays DEMAC employs more excellent and elite people of this industry working in the production division, technical department, and sales and administration offices.
After an established leadership in Chinese national territory, DEMAC progressively enlarge the business in the international markets, such as Asian and American markets.
DEMAC has increased the sales, thanks to the service offered to the customers, customization of products, and the maintenance granted from technical department.
DEMAC was established by several experts and authorities of the industry. Thanks to them that decided to invest in high technology, DEMAC is one of the leading companies in the market.
Quality products, cutting-edge technology, flexibility and practical aspect are on the basis of the DEMAC's machinery.
DEMAC offers numerous products all characterized by friendly use combined to high technological level.
The wide range of products and services keep the customers satisfied and close to DEMAC.
Thanks to the wide range of machines, DEMAC is able to satisfy any kind of customer, from the big companies to the small window and door manufacturers, offering the possibility to purchase.
For small companies: (cutting machines, drilling machines, copy routers, and end-milling machines)
For medium companies: (double mitre saws, cutting machines, copy routers, end-milling machines, and crimping machines)
For big companies: (CNC machining centers, double mitre saws, cutting machines, copy routers, end-milling machines, crimping machines, and assembling equipment)
DEMAC manufactures cutting-edge machinery that grants long time productivity, reducing the working time, and at the same time offering an excellent quality/price ratio.
DEMAC develops new and fast solutions for the demands of the market.
