Quick Details
Description
- Place of Origin:Shandong, China (Mainland)
- Brand Name:DEMAC
- Model Number:LXF2-300X100
- After-sales Service Provided:Engineers available to service machinery overseas
- Power supply:Made to order
- Motor power:2x0.75KW
- Air consumption:30L/min
- Operation air pressure:0.5~0.8Mpa
- Milling cutter rotary speed:12000r/min
- Milling cutter specification:5x60; 8x85
- Processing dimension range:H-100mm W-120mm
- Drill template specification:90mm*290mm
- Dimension:880x700x1470mm
- Weight:300kg
Specification:

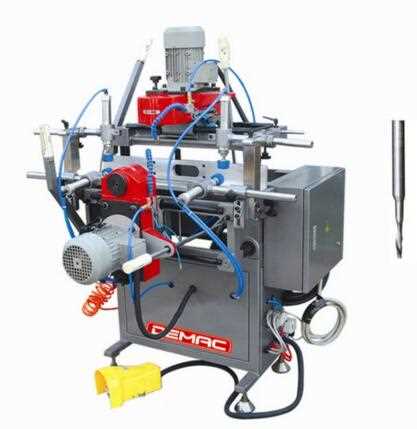

Used for milling production of all kinds of holes and slot in aluminum and PVC window and door.
Vertical and horizontal both direction milling work.
Mill different holes, slots with different templates.
Linear bearing used in the level moving ensured the accurate position for hole/slot shape milling.
High steel body with enhance design to ensure the stable working.
Technical Parameter:
Power supply: Made to order
Operation air pressure: 0.5~0.8Mpa
Motor power: 2x0.75KW
Air consumption: 30L/min
Milling cutter rotary speed: 12000r/min
Milling cutter specification: Φ5*60\φ8*85
Processing dimension range: H-100mm W-120mm
Drill template specification: 90mm*290mm
Dimension: 880*700*1470mm
Weight: 300kg
