Quick Details
Description

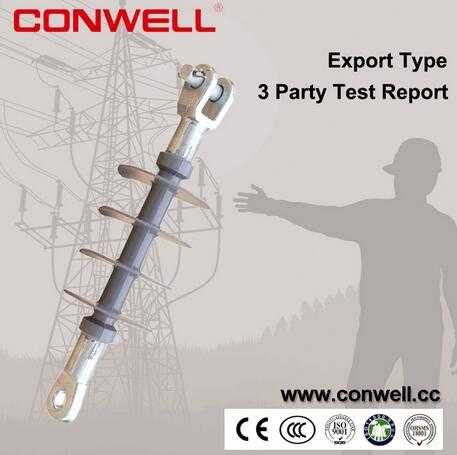

- Model NO.: FPQ-24/4
- Material: Composite Polymer
- Type: Polymer Insulator
- Connection Method: Spherical Type
- Certification: CCC, CE, ISO9001
- Product Name: Polymer Insulator
- Sample: Offer Free Sample
- Length: 335mm
- Creepage Distance: 655mm
- ODM: Yes
- Trademark: CONWELL
- HS Code: 85369090
- Application: High-voltage
- Structure: Suspension Insulator
- Usage: High Voltage Power Transmission, Insulation, Electrical Installation
- Size of Bearing Capacity: 4kn
- Color: Grey
- Certificate: CCC,Ce,ISO9001,RoHS
- Rated Voltage: 24kv
- Insulation Distance: 273mm
- OEM: Yes
- Conwell: Factory
- Origin: Zhejiang, China
The main technique parameter of suspension insulator.
1. The design of shed adopted unique aerodynamics principle.
2. The end seal adopted tje high temperature sulfuration high pressure seal technique, to achieve to
the aim of three-protection, to ensure the end seal of metal fitting is reliable performance.
3. Adopt international advanced joint the technique for metal fitting connection
4. Sheath thickness accord with accord the IBC international standard.
|
Model
|
Rated Voltage (kV)
|
Breaking Load (kN)
|
Length (mm)
|
Insulation Height (mm)
|
Creepage Distance (mm)
|
Unbrella Diameter (mm)
|
1min
power
frequency
wet withstand
voltage (kV)
|
Full
wave lightning
impulse
withstand
voltage
(peak value)
(kV)
|
|
FPQ-24/4
|
24
|
4
|
335
|
273
|
655
|
146/112
|
60
|
125
|
|
FPQ-24/6
|
24
|
6
|
310
|
210
|
535
|
120
|
60
|
125
|
|
FPQ-36/5
|
36
|
5
|
450
|
340
|
950
|
145/115
|
95
|
230
|
|
FXBW2-12/70UD
|
12
|
70
|
350
|
180
|
360
|
98/88
|
95
|
105
|
|
FXB2-15/70UD
|
15
|
70
|
375
|
200
|
470
|
98/88
|
42
|
105
|
|
FXB2-24/70UD
|
24
|
70
|
430
|
290
|
680
|
98
|
42
|
150
|
|
FXB2-28/70UD
|
28
|
70
|
430
|
290
|
680
|
98
|
95
|
230
|
|
FXB2-33/70UD
|
33
|
70
|
550
|
360
|
720
|
98
|
95
|
230
|
|
FXB2-35/70UD
|
36
|
70
|
570
|
400
|
1000
|
76
|
95
|
230
|
|
FXBO2-36/70
|
36
|
70
|
650
|
450
|
720
|
98
|
95
|
230
|
Zhejiang Keyi Electric Group Co., Ltd., founded in 2004, is located in chengdong industry zone Yueqing, Zhejiang province, China. It is a hi-tech enterprise specialized in designing and producing insulation piercing connector, anchor clamp, suspension clamp, waterproof box and other connecting accessories according to NFC, IEC, EN, UL standards. Besides, it has achieved ISO9001 Quality Management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, CE, RoHS and other certificates, as well as many invention and utility model patents in China.
We are Electric Power Association member and government authorized quality supplier, only focus on ABC accessories scope for 13 years. Our concentration makes us professional and capable enough for all ABC accessories production and invention.
About Testing
Quality management system: Test strictly done by ISO, EN, NFC, UL and other relative standards. It has a lab (city-level technology research and development center) with full testing facilities for physical, chemical, electrical tests.
About Technology:
We have R&D team, technology team, quality team, mould development&production team.
Our products sell to all over the world. The main market is Europe. We have patient sales, good technical support, strict quality control, deep in ABC cable fittings. You will find business is an enjoyment. We will always be here for you!
