Quick Details
Description
- Technics: Vulcanizing
- Usage: Line Fittings
- Product Name: 10 Ka Lightning Arrester
- Conwell: Surge Arrester Factory
- Color: Grey Surge Arrester
- OEM/ODM: Yes
- Function: Have 3 Party Test Report
- Origin: Zhejiang, China
- Standard: NFC
- Type: 10 Ka Lightning Arrester
- Certificate: ISO9001,Ce,RoHS
- Housing: Polymer
- Housing Material: Silicone Rubber
- Sample: Offer
- Trademark: CONWELL
- HS Code: 85369090

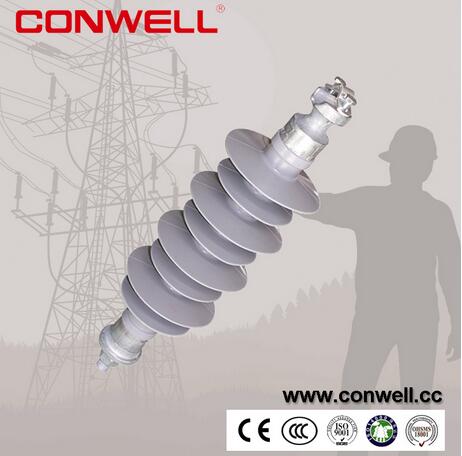

The metal oxide surge arrester (MOA) is the most advanced over-voltage protector in the world. The metal oxide varistors(MOV), as the core organ, made under japanese technology license. It have good response to steep front surge, excellent volt-ampere characteristics and high discharge capability, which provides a very consistent protection merit at steep front surge,lighting surge anf switching surge, and enhances protective capability.
Condition of use
-The ambient air themperatures is no higher than +40ºC, no lower than -40ºC.
-The altitude above sea level does not exceed 2000m.
-AC system frequency is 50HZ or 60HZ.
-AC voltage brought to bear on arrester for a long time does not exceed arrester's continuous operating voltage.
-Maximun wind speed does not exceed 35m/s.
-The earthquake intensity does not exceed 7 degrees.
|
ALL TYPE ARRESTER TECHNICAL PARAMETER
|
|
Type
|
Rated voltage (kV)
|
Continuous operating voltage (kV≥)
|
1/4Steep current residual voltage (kV≤)
|
8/20 Lightning current residual voltage (kV≤)
|
30/60S witching current residual voltage (kV≤)
|
2000μs rectangular wave current impluse (A)
|
4/10 Current withstand discharge capacity (kA)
|
|
YH5W-3L
|
3
|
2.55
|
9.5
|
9
|
7.7
|
100
|
65
|
|
YH5W-6L
|
6
|
5.10
|
19.0
|
18
|
15.4
|
|
YH5W-9L
|
9
|
7.65
|
28.5
|
27
|
23.1
|
|
YH5W-12L
|
12
|
10.2
|
38.0
|
36
|
30.8
|
|
YH5W-15L
|
15
|
12.7
|
47.5
|
45
|
38.5
|
|
YH5W-18L
|
18
|
15.3
|
57.0
|
54
|
46.2
|
|
YH5W-21L
|
21
|
17.0
|
66.5
|
63
|
53.9
|
|
YH5W-24L
|
24
|
19.2
|
76.0
|
72
|
61.6
|
|
YH5W-27L
|
27
|
21.9
|
85.5
|
81
|
69.3
|
|
YH5W-30L
|
30
|
24.4
|
95.0
|
90
|
76.5
|
|
YH5W-33L
|
66
|
26.8
|
104.5
|
99
|
84.7
|
|
YH5W-36L
|
36
|
29.0
|
114.0
|
108
|
92.4
|
|
YH5W-42L
|
42
|
34.1
|
132.3
|
126
|
100.1
|
|
YH10W-3L
|
3
|
2.55
|
9.5
|
9
|
7.7
|
250
|
100
|
|
YH10W-6L
|
6
|
5.10
|
19.0
|
18
|
15.4
|
|
YH10W-9L
|
9
|
7.65
|
28.5
|
27
|
23.1
|
|
YH10W-12L
|
12
|
10.2
|
38.0
|
36
|
30.8
|
|
YH10W-15L
|
15
|
12.7
|
47.5
|
45
|
38.5
|
|
YH10W-18L
|
18
|
15.3
|
57.0
|
54
|
46.2
|
|
YH10W-21L
|
21
|
17.0
|
66.5
|
63
|
53.9
|
|
YH10W-24L
|
24
|
19.2
|
76.0
|
72
|
61.6
|
|
YH10W-27L
|
27
|
21.9
|
85.5
|
81
|
69.3
|
|
YH10W-30L
|
30
|
24.4
|
95.0
|
90
|
76.5
|
|
YH10W-33L
|
66
|
26.8
|
104.5
|
99
|
84.7
|
|
YH10W-36L
|
36
|
29.0
|
114.0
|
108
|
92.4
|
|
YH10W-42L
|
42
|
34.1
|
132.3
|
126
|
100.1
|
Zhejiang Keyi Electric Group Co., Ltd., founded in 2004, is located in chengdong industry zone Yueqing, Zhejiang province, China. It is a hi-tech enterprise specialized in designing and producing insulation piercing connector, anchor clamp, suspension clamp, waterproof box and other connecting accessories according to NFC, IEC, EN, UL standards. Besides, it has achieved ISO9001 Quality Management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, CE, RoHS and other certificates, as well as many invention and utility model patents in China.
We are Electric Power Association member and government authorized quality supplier, only focus on ABC accessories scope for 13 years. Our concentration makes us professional and capable enough for all ABC accessories production and invention.
About Testing
Quality management system: Test strictly done by ISO, EN, NFC, UL and other relative standards. It has a lab (city-level technology research and development center) with full testing facilities for physical, chemical, electrical tests.
About Technology:
We have R&D team, technology team, quality team, mould development&production team.
Our products sell to all over the world. The main market is Europe. We have patient sales, good technical support, strict quality control, deep in ABC cable fittings. You will find business is an enjoyment. We will always be here for you!
