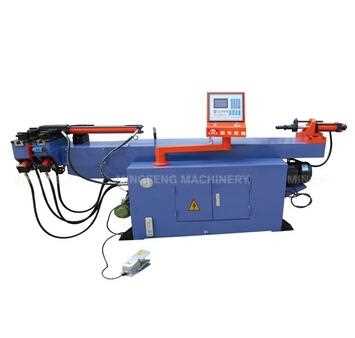

Quick Details
Description
- Condition:New
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:Mingfeng steel window grill design cutting bending machine
- Model Number:DM-63NC steel window grill design cutting bending machine
- Machine Type:Pipe and Tube Bending Machine
- Raw Material:Sheet / Plate Rolling
- Material / Metal Processed:Carbon Steel
- Power:Hydraulic
- Automation:semi-automatic
- Extra Services:Machining
- Certification:ISO 9001:2000
- After-sales Service Provided:Engineers available to service machinery overseas
- Product name:steel window grill design cutting bending machine
- Color:Blue
- Warranty:12 Months since goods arrive
- Service:Lifetime
- Quality:Firs Level
- Packing:Iron case case for steel window grill design cutting bending machine
- Dimension(L*W*H/mm):3900*850*1100
- Weight(kg):1250
- OEM:Available
- Factory:2 hours drive from Shanghai
Specification:
|
Model
|
DM63NC
|
|
Max-applicable steel pipe (mm)
|
φ63
|
|
Max-applicable stainless steel pipe (mm)
|
φ51
|
|
Maximum bending radius (mm)
|
R300
|
|
Maximum bending angle
|
190°
|
|
Maximum straight-length (mm)
|
2500
|
|
Oil pressure (Mpa)
|
14
|
|
Motor power (KW)
|
5.5
|
|
Machine size (L * W * H / mm)
|
3900×850×1100
|
|
Weight (kg)
|
1250
|
Equipment advantages:
1. Using NC modules, operated by man-machine conversation mode
2. Manual and automatic pattern can be chosen freely and automatically convert
3. Multi-angles can be set and controlled by multi-groups of procedures
4. Error message displayed on the screen to help the operator immediately excluded
5. With automatic counting, automatic core pulling and anti-wrinkle device (Except the vertical type)
6. With stable bed structure and anti-deformed
Zhangjiagang Mingfeng Machinery Manufacturing Co., ltd. was established in 2001, specializes in the production of general machinery manufacturing, located in Zhangjiagang city at the center of Shanghai, Suzhou, Wuxi, Nanjing etc., transportation is very convenient
Company owns top advanced international processing equipments and testing methods in this field with complete quality management and after-sale service system. It offers OEM and custom processing service as well. We sincerely provide foreign and domestic customers with whole.
Our aim: "Technology-based, Quality First, Customer Foremost"
