Quick Details
Description
- Condition:New
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:Mingfeng pipe bending machine for window

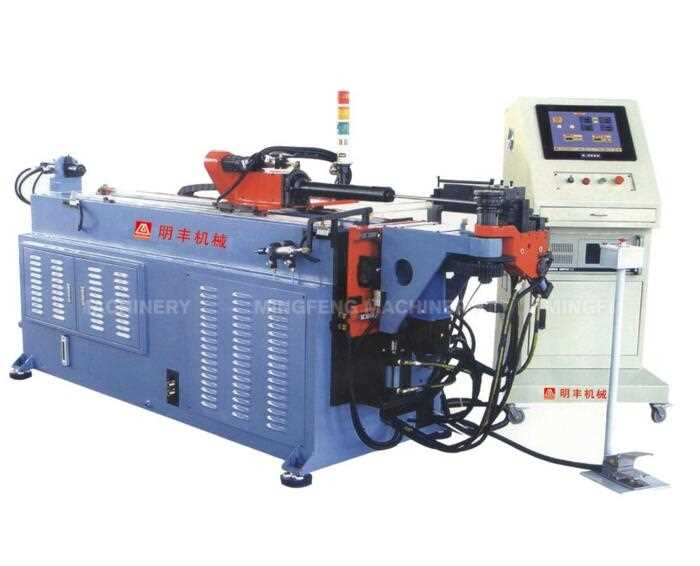

- Model Number:DM-38CNC-2SII pipe bending machine for window
- Machine Type:Pipe and Tube Bending Machine
- Raw Material:Sheet / Plate Rolling
- Material / Metal Processed:Carbon Steel
- Power:Cnc
- Automation:Automatic
- Extr Services:Machining
- Certification:ISO 9001:2000
- After-sales Service Provided:Engineers available to service machinery overseas
- Product name:DM-38CNC-2SII pipe bending machine for window
- Color:Blue
- Warranty:12 Months since goods arrive
- Service:Lifetime
- Quality:Firs Level
- Packing:Iron case/wooden case for pipe bending machine for window
- Dimension(L*W*H/mm):4000*730*1600
- Weight(kg):1500
- OEM:Available
- Factory:2 hours drive from Shanghai
Specification:
|
Model
|
DM38CNC
|
|
Max-applicable steel pipe (mm)
|
φ38
|
|
Max-applicable stainless steel pipe (mm)
|
φ32
|
|
Maximum bending radius (mm)
|
R200
|
|
Maximum bending angle
|
190°
|
|
Maximum feed length (mm)
|
2000
|
|
Working speed
|
Bending speed
|
Max85°/s
|
|
Rotary speed
|
Max200°/s
|
|
Feeding speed
|
Max1000mm/s
|
|
Working precision
|
Bending precision
|
±0.1°
|
|
Rotary precision
|
±0.1°
|
|
Feeding accuracy
|
±0.1mm
|
|
Bending mode
|
Hydraulic/servo
|
|
Rotary servo motor power
|
750w
|
|
Feeding servo motor power
|
1kw
|
|
Motor power (KW)
|
4
|
|
Machine size (L * W * H / mm)
|
4000×730×1600
|
|
Weight (kg)
|
1500
|
Equipment advantages:
1. Bending can choose hydraulic (or servo) drive; Rotation angle and feeding by servo motor drive, fast, high power and accuracy
2. Adopt PLC touch module, whole process with Chinese/English operating tips;
3. Multi-angles can be set and controlled by multi-groups of procedures, greatly improves
productivity
4. Error message displayed on the screen to help the operator immediately excluded
5. Especially suitable for multi-angle space and high precision pipe processing; Such as: automotive tubing, air-conditioning pipe, motorcycle / bicycle frames, etc.
Zhangjiagang Mingfeng Machinery Manufacturing Co., ltd. was established in 2001, specializes in the production of general machinery manufacturing, located in Zhangjiagang city at the center of Shanghai, Suzhou, Wuxi, Nanjing etc., transportation is very convenient
Company owns top advanced international processing equipments and testing methods in this field with complete quality management and after-sale service system. It offers OEM and custom processing service as well. We sincerely provide foreign and domestic customers with whole.
Our aim: "Technology-based, Quality First, Customer Foremost"
