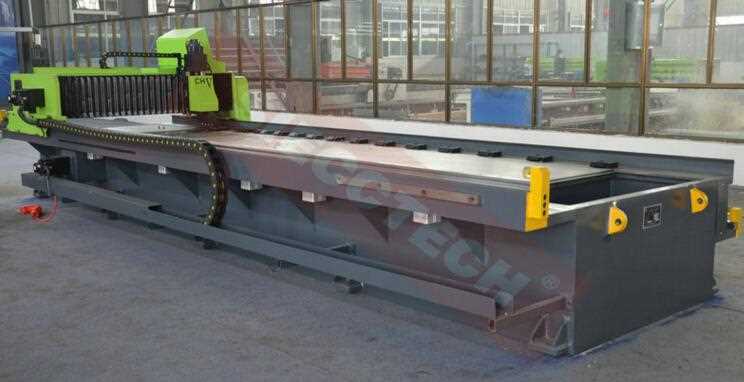

siecc/hect door or windows made machine named v-cutting or grooving machine

• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: SIECCTECH/SIECC/P&K
• Model Number: CNC SHEET SLOTTING MACHINE
• Voltage: CUSTOMIED
• Dimension(L*W*H): 6000*2000*650
• Weight: 8ton
• Certification: CE/GOST/SGS/ISO
• Warranty: 12 months
• After-sales Service Provided: Engineers available to service machinery overseas
• BRAND: SIECC
• BALLSCREW: HIWIN
• CONTACTOR: SCHNEIDER
• INVERTER: MITSUBISHI
• PNEUMATIC COMPONENT: AIRTAC
• AC ELECTRIC MOTOR: SIEMENS
• ALLOY BLADES: KORLOY
• SERVO MOTOR: YASKAWA
• WARRANTY: 12MONTHS

 1, Main Parameter

 Note:

X shaft——left-right beam shaft

Y1 shaft——forward-backward knife rest shaft

Y2 shaft——forward-backward end pressure shaft

Z shaft——up-down knife rest shaft

2. Structure characteristics

     This machine is composed of machine base, - beam, turret, CNC system, air pressure feeding system, compressed air blowing system etc., for  the gantry-travelling structure.

     Frame, beams are made of box type structure, the finite element optimization design, all steel welded prior to milling machine, fully guarantee that no gaps between the board and the board, welding after tempering furnace to eliminate the residual stress, rigidity, good precision, long service life.

     The forward-backward knife rest (Y1 shaft) movement, up-down knife rest (Z shaft) movement, forward-backward end pressure (Y2 shaft) movement are controlled by CNC system, AC servo motor, ball screw drive. It has the advantages of high control accuracy, positioning precision.

      By air pressure feeding system, according to the different thickness of workpiece surface and adaptive feed side pressure, on board the pollution and effectively guarantee of environment and temperature, is one of the effective measures to ensure the machining accuracy and repeatability and accuracy.

     Compressed air blowing material and cooling system, which can prevent the cutting scrap scratch the surface of the workpiece, but also through the tool cooling, improve the service life of cutting tools.

     Increase in the pressure feed system of machine at the same side of the many to blowing system, greatly ensure the waste collection.

 3. Performances

     Has a stable, solid, features convenient use etc..

     Multi parameter - control system has, large memory capacity, convenient operation.

     Shafts of control for the 4 shaft, the 3 shaft AC servo motor system, the control precision is high.

     With 4 knife cutting structure, which can greatly improve the work efficiency, and can improve the machining quality of the products.

     Using motion system of ball screw, linear guide, improve the machine precision and durability.

4. Pneumatic system

     Pneumatic system design, compact structure, strong sealing performance, long service life.

     Imported pneumatic components, good sealing performance, low noise, fast response, good environment adaptability.

5. Electrical control system

     Electrical components in line with international standards, safety and reliability, strong anti-interference ability.

     Electric control adopts programmable controller, frequency conversion governor, non-contact operation, safety and reliability, long service life.

     The main components of world famous brand products.

6. Before the pressure foot, lateral foot

     The presser foot by quenching treatment, not easy to deformation.

7. Workbench

     Adaptive work table, after process and special process, greatly improving the service life, such as improper operation table uneven situation, the machine has the function of self repair table.

8. The main parts list

SIECC(Shining) concentrates on plate solution machines for more than 18 years. Our products, Press Brake/Shearing Machine/Rolling Machine/Hydraulic Press distribute to about 40 countries including EU, America, Middle East, South and Middle Asia. SIECC has invested 5000 Square Meter Manufactory and 4000 Square meter exhibition showroom in Jiangsu Province, we have enough stock machines under different series to shorten the delivery period.

Our company holds on the certification of CE and ISO, the quality is well guaranteed and meets all kinds of relate plate solution like shearing,bending,rolling,punching,press etc.

Our produce capacity is leading in China Machinery Field. The working standard is strictly identified and certificated by China Quality Department and international association. We earn large market share in domestic and also international market and has been treated as famous brand with good reputation not only in machine quality itself ,but also in tailored and oriented service and communication.

Other brother brands are P&K and SIECCTECH. They are born to meet the furthermore high-technology solution demands. We have found out, the automatic machines are widely used ,so we should be creative to extend and penetrate into this development. The working principle is to find in advance with some high universities or colleagues to make any new technology or ideas come true.

SIECC is a group company also who is not only focus on produce but also in after-sales service. We have established scientific package solution for machines in container transportation, road transportation, train transportation through safety and cost-effective way. Our machine can be disassembled if needed to save the international logistics solution cost. The assemble in the buyer side is available. SIECC has invested own shipping logistics company in Shanghai. Mostly machinery is large or Huge, so the solution has to be cost-effective to be competitive in international market. Then the communication will be directly ,report can transfer to the clients' side to understand the machine situation in road or sea.

As an mature and developed industry group entity, we also engaged in some oversea trade show, so we hope our clients can meet us there to discuss face to face.

Meantime, we welcome any oversea or domestic agent to work with us together. We have sestablished international network for a better and long-term working relationship as the world becomes small, we become close.

Welcome your visit!
