  • plate heat exchanger gasket-GEA VT80

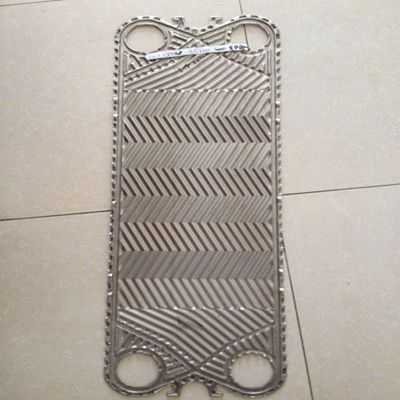

plate heat exchanger gasket-GEA VT80

Model: GEA VT80 Material: EPDM/NBR/Viton

Product Details

Quick Details

Description

1. Plate Material: AISI304;  AISI316; Tatinium

2. Heat transfer area: Up to 3500m2

3. Port connection: Dn15-Dn500

4. Flow rate : Up to 4500m3/h

Product Name
 Plate heat exchanger
Plate Material
AISI316; Tatinium
Gasket Material
NBR PER; EPDM  PER
Design Pressure
10 bar, 16bar, 150 psi
Design temperature
Max 150 ℃ .302 F
Approvals
PED.ASME
Port Hole
500mm
Used
Large scale process or seawater cooling

.jpg

Advantages of plate heat exchanger:



1. High heat transfer rate: In the condition of same pressure loss, the heat transfer coefficient of plate heat exchanger is 3 to 5 times higher than shell and tube type.



2. Less heat loss: The adjacent plates are parallel and in inverted position, so flow mode of the two fluids is coflow or counterflow, no side stream. Owing to this, the thermal ultilization is risen greatly.



3. Compact structure, space-saving: In a whole machine, the space in two plates is very small, so big space is not needed. Compared with shell and tube heat exchanger, to achieve the same heat exchanger amount, plate heat exchanger just covers area of 1/8 to 1/5.



4. Easy to change heat transfer area: It just need add or remove several plates to change the heat transfer area or vary the flow path combination, so that the whole machine can be apply to new working condition. However, shell and tube heat exchanger can not be refit easily.



5. Easy to clean and repair: For plate and frame exchanger, it is very easy to take plates down, clean and reassemble. It is very convenient for some heat exchanger equipments which need to be washed frequently.



6. Wide range of application: Plate heat exchanger has been used in various industrial field, like chemical, dairy, brewery, power & marine, food & beverage, pharmaceutical, healthcare, laboratory, etc.



7. Long service time: if working in the proper working condition and take maintance regularly, most plate heat exchangers can work for 10-15 years, some even 20 years.

Product Description


We provide all kinds of plates which cover brands  Alfa Laval, Tranter, SWEP, GEA, Sondex, APV, Hisaka, Schmidt, Fischer, Mueller, Stock and so on.  The material of plate can be chosen as your demands, please refer to the form below:



Plate material Applicable fluids
Stainless steel (SUS304.316 ect) Clean water, river water, edible oil, mineral oil
Stainless steel & Ti, Ti-Pd Sea water, salty water, salt compounds
20Cr, 18Ni, SMO Dilute sulfuric acid, water solution of salt matter, Inorganic solution
Nickel High temperature and high concentration of caustic soda
Hastelloy Concentrated sulfuric acid, Hydrochloric acid, Phosphoric acid



Besides we also produce gasket for corresponding plate. The material includes EPDM, EPDM HT, NBR, HNBR, NBR HT, Viton,CR, Silicone and so on. The fixed mode is also different, it  mainly has 4 types: Clip-on type, Glue type, Snap-in type and Stud type.


Packaging & Shipping

Packaging: Wooden pallet / Plywood case/ As your demands

Shipping: Air freight or sea freight

Delivery: 7-15 days M10M package.jpg

Company Information


Tianjin Dingda Mold Co., Ltd is a leading manufacturer and exporter of Plate Heat Exchanger in China with nearly 10 years good famous. We are committed to produce high quality products with complete models and specifications to satisfy all needs of the clients.

Our company was founded to produce Molds for Plate heat Exchanger in 2005 and achieved amazing development in a short period. Until 2009, our business has expanded to making plate mold and gasket mold, producing PHE plate and gasket, assembling whole machine and selling related production machine etc.

As a professional manufacturer, we have more than 5000m2 standard workshops with nearly 100 staff members. We have advanced special production technology and have formed three separate production lines for each product-mold, gasket and plate. We have a powerful R&D department and can accept all kinds of OEM and ODM.

Moreover, we have a strict quality control and after-sales service system, from material purchasing to finished product package until the product perfectly arrives at your side. Now, our products have been widely used all over the world in various segments, e.g. industrial, chemical, food & beverage, dairy, petroleum, power & marine with great credit and public praise.

Our aim is first-rate quality, satisfactory design and competitive price. Only win-win is the way to win!,


Our Services

1. Working condition calculation and design

2. Provide product drawing

3. Product one year warranty

Why choose us ?

1. OEM/ODM manufacturer

2. About 10 years experience in the field of plate heat exchanger

3. Complete models: supply plates and gaskets of most famous brands, like Alfa Laval, GEA, APV, Tranter, Sondex, Funke, Vicarb, etc.

4. ISO9001:2008 international quality standard certification

5. Full sets of production equipment, including granding machine, CNC milling machine, hydraulic shears,  press machine, punching machine, etc.

6. Independent R&D department, product customization is welcomed.

7. High quality products, competitive pricequick delivery

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
