• mineral use 6-S shaking table

mineral use 6-S shaking table

shaking table features: 1.efficient and energy-saving 2.high quality and widely used 3.long service life 4.manufacturer Please contact:naijiaxin11@yeah.net

Product Details

Quick Details

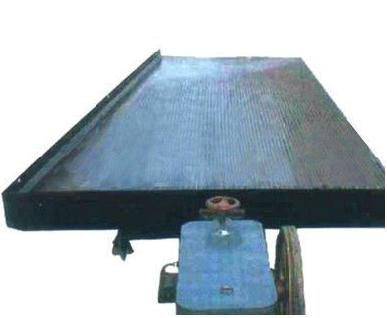

 The table is vibrated longitudinally by a mechanism, using a slow forward stroke and a rapid return, which causes the mineral particles to "crawl" along the deck parallel to the direction of motion .The minerals are thus subjected to two forces that due to the table motion and the flowing film of water at right angle to it. The net effect is that the particles move diagonally across the deck from the feed end and, since the effect of the flowing film depends upon the size and density of the particles, they will fan out on the table, the smaller, denser particles riding highest towards the concentrate launder at the far end, while the larger lighter particles are washed into the tailings launder which runs along the length of the table.

Company Profile

Yunnan Kun-Ding Machinery Equipment Co., Ltd. is one of the professional machinery manufacturing enterprises engaged in the design, production and sale of full sets of mining machinery and sand & stone production line machinery. Our main equipment includes crushers, ball mills, magnetic separators, flotation separators, rotary kilns, vibrating screens, sand making machines, etc. The headquarters of our company is located in the National-Level Economic And Technology Development Zone, Kunming City, Yunnan Province and owns three production branches and one R&D center. Since our establishment, sticking to the principle of "modern management system and self-innovation", we have attracted a large amount of talents with the total amount of 369 to keep product innovation to meet the market demand and ensure the promise of after-sale service. We always pay much attention to world technological exchange and cooperation, and have introduced several advanced technologies and technical processes from the USA, Germany and Australia. We have set up an internationally advanced production line and a first-class modernized testing base to ensure reliable and steady equipment quality, thus making us win a good industrial reputation and keep at the front rank of China. Up to now, ten thousand of our clients have been all over China, and lots of mineral dressing plants with the capacity of 5-10000TPD designed, manufactured and installed by our company have been spread over China's main mine areas. At the same time, our equipment has been exported to the markets in Southeast Asia, Europe, Africa, Latin America, etc.
