Quick Details
Description
- Type: Filling Machine, Filling capping machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch, Other, Bottle
- Packaging Material: Glass, Metal, Plastic, Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380V/50Hz
- Power: 2.0kw
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: Nafeng
- Model Number: NFFGX-50
- Dimension(L*W*H): 2000*1000*1800mm
- Weight: 700KG
- Certification: CE SGS
- After-sales Service Provided: Engineers available to service machinery overseas
- Voltage:: 380V
- power: 2.0kw
- Production capacity: 30-60bottles/min 70-100bottles/min
- Filling volume: 2-500g
- Packing: Standard wooden case
- Delivery: Shipping or air
- Material: SUS304 and 316 stainless steel
- Brand: Nafeng
Brief introduction:

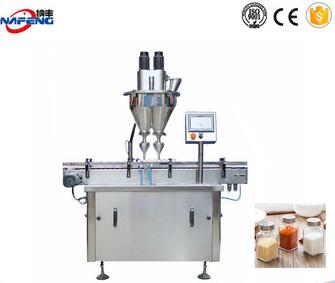

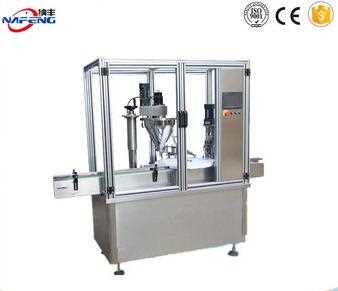

This machine is suitable for a variety of small doses of power filling and capping such as Penicillin
power,collagen power,pesticides power,and so on.Widely used in food,pharmacutical,chemical
industries and scientific research.Single machine can produce,but also with washing machine,dryer
and other equiment linked production line.Full compliance with the GMP requirements.
Characteristic:
1.Human-machine interface settings,an easy and intuitive,PLC control,precision filling.
2.Frequency control,the production rate can be adjusted,automatically count.
3.no bottle no filling.
4.disc positioning filling,stable and reliable.
5.High-precision cam meter control,precise positioning.
5.SUS304 and 316L stainless steel,ful compiance with GMP requirements.
Technical parameters:
|
Product name
|
liquid powder filling machine
|
|
Filling volume
|
2-500g
|
|
Loading error
|
≤±1%
|
|
Rotation cover pass rate
|
≥99%
|
|
Filling stype
|
metering screw filling
|
|
Production rate
|
30-60bottles/min
|
70-100bottles/min
|
|
Power supply
|
380v/50hz 2.0kw
|
|
Weight
|
700kg
|
|
Dimension
|
2000*1000*1800mm
|
Shanghai Nafeng Machinery Equipment Co., Ltd. is a manufacturer of filling and capping machines with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and pharmaceutical field and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.Specializing in all kinds of machines production, including: filling machine, capping machine, crewing machine, bottle washing machine,counting machine,labeling machine and so on.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
