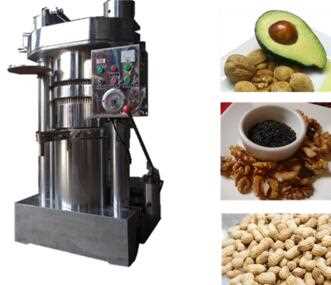

Description of WECARE home olive oil press/cold olive oil press/mini olive oil machine:
It uses the world-class advanced hydraulic system, and the power source is ultrahigh pressure combined hydraulic pimp station. The most high working pressure can reach 63Mpa. The cake surface unit pressure can be up to 60 MPa, which doubles the pressure of the national standard. Our oil press has the advantages of high pressure, high oil yield, compact structure and controlled heating. Besides, it is not only highly efficient and energy saving, but also environmental friendly and clean. It is easy and safe to operate the oil press, which dramatically reduces labor intensity. It can be widely used in the pressing of oil plants such as sesame, soybean, peanut, flax, walnut kernel, tea seed, almond kernel and pine nut(removing the peel will get better effect).
Main characteristics of WECARE home olive oil press/cold olive oil press/mini olive oil machine:
1.Small size, covers small area, easy to learn, easy operation, no special requirement for the operator.
2.The machine is hydraulic oil press, with high pressure and high oil yield rate , the oil will be more clear.
3.The machine is fully automatic including the pre heating system and pressure system.
4.The main parts of the machine is made of alloy steel(customer also can choose stainless steel) with high quality, combine the high technology.
5.The machine is applicable to the fixed-point processing and flow operation, convenient movement.
Main characteristics of home olive oil press/cold olive oil press/mini olive oil machine:
|
Model
|
WK-180
|
WK-230
|
WK-280
|
|
Type
|
Vertical hydraulic
|
Vertical hydraulic
|
Vertical hydraulic
|
|
Size
|
800*650*1100(mm)
|
900*750*1400(mm)
|
1100*1000*1500(mm)
|
|
Weight
|
Net 535kg;
Gross 585kg
|
Net 880kg;
Gross 910kg
|
Net 1320kg;
Gross 1500kg
|
|
Largest work pressure
|
60MPa
|
60MPa
|
60MPa |
|
Electric heating rings power
|
1 kw
|
1 kw
|
2 KW |
|
Heating circle control
the temperature
|
70-100℃
|
70-100℃
|
70-100℃ |
|
Capacity
|
30-35KG/H
|
50-55KG/H
|
100-120KG/H
|
|
Motor power
|
1.5kw; 380V or 220V
|
1.5kw; 380V or 220V
|
2.2kw; 380V or 220V |
|
Customs code
|
8479200000
|
8479200000
|
8479200000 |
Difference between hydraulic cold oil press machine and screw oil press machine:
1. The pressing way is different:
Hydraulic oil press makes use of hydrostatic pressure transmission principle. It takes liquid as the transmitter of pressure and squeezes the oil seeds. It is a closed loop system composed of hydraulic system and oil press ontology, including hydraulic power pack, controlling valve, motor, electrical cabinet, oil cylinder, charging basket and rack.
Screw oil press force feeding though screw shaft. Pressing rings roll and produce high temperature and high pressure. Then oil will be squeezed out through the weep gap of the pressing rings. It includes rack, electrical cabinet, screw shaft, pressing rings and cake mouth.
2. The quality of the oil is different, the price of the oil is different:
The method of hydraulic oil press is a pure physical one. During pressing process, it does not produce high temperature and does not destroy the organic component of the seeds. Oil quality is better with less impurity. It is very suitable for high oil content seeds, such as sesame and walnut.
Due to screw oil press produces high temperature, it will destroy the organic component of the seeds. Besides, for high oil content seeds there will be greasy filth coming out from the pressing rings. The oil will have more impurity. As the oil is of high temperature, cooling process is necessary.
3. The power is different:
For hydraulic one, the motor power is about 1.5-3KW.
For screw one, the smallest one is about 5.5KW
