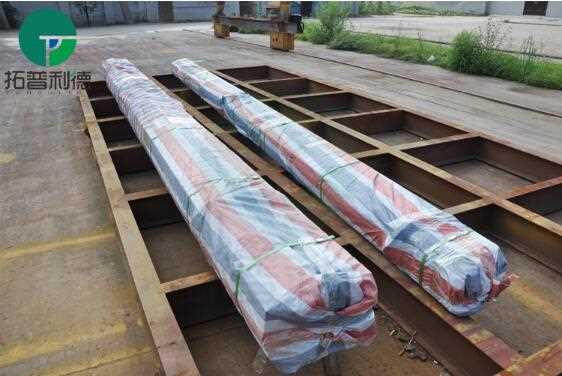

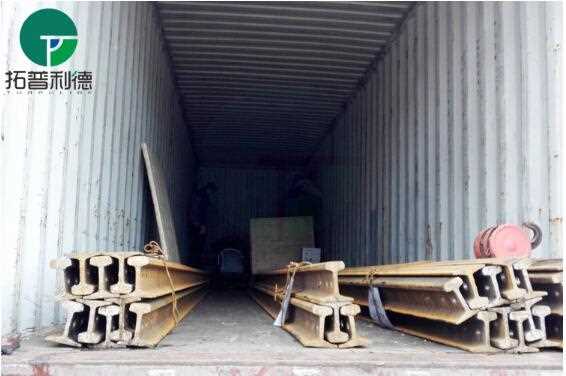

- Packaging Details:Rails are bundled into the container, and parts are into the high quality wooded case.
- Delivery Time:7-10 days after getting advance payment
The rails we can provide as following:
| Model |
Height(mm) |
Bottom (mm) |
Head (mm) |
Web(mm) |
Length per piece (m) |
Material |
| 8kg/m |
65 |
54 |
25 |
7
|
6 |
Q235 |
| 15kg/m |
79.37 |
79.37 |
42.86 |
8.33
|
6-10 |
Q235/55Q |
| 18kg/m |
90 |
80 |
40 |
10 |
6-10 |
Q235/55Q |
| 24kg/m |
107 |
92 |
51 |
10.8 |
6-10 |
Q235/55Q |
| 30kg/m |
107.95 |
107.95 |
60.33 |
12.3
|
6-10 |
Q235/55Q |
| 38kg/m |
134 |
114 |
68 |
13 |
12.5 |
45MN/U71MN |
| 43kg/m |
140 |
114 |
70 |
14.5 |
12.5 |
45MN/U71MN |
| 50kg/m |
152 |
132 |
70 |
15.5 |
12.5 |
45MN/U71MN |
| 60kg/m |
176 |
150 |
73 |
16.5 |
12.5 |
U71MN |
| QU70 |
120 |
120 |
70 |
28 |
12-12.5 |
U71MN |
| QU80 |
130 |
130 |
80 |
32 |
12-12.5 |
U71MN |
| QU100 |
100 |
150 |
100 |
38 |
12-12.5 |
U71MN |
| QU120 |
170 |
170 |
120 |
44 |
12-12.5 |
U71MN |

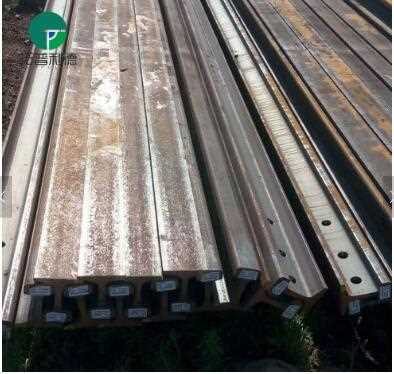

Types of P38 heavy load railway steel rail China factory
- 1) Light steel rail, material:Q235, 55Q, Type:30kg/m, 24kg/m, 22kg/m, 18kg/m, 15kg/m, 12 kg/m, 8 kg/m;
- 2)Heavy steel rail, material:45MN, U71MN, Type:38kg/m, 43kg/m, 50kg/m;
- 3)Crane rail, material:U71MN, Type:QU70kg/m , QU80kg/m, QU100kg/m, QU120kg/m;
