• bituo 250T4000 door frame press brake with E21

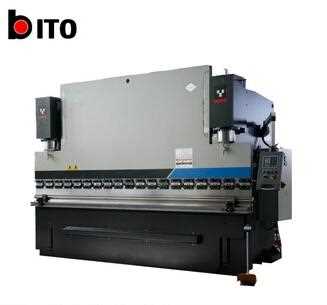

bituo 250T4000 door frame press brake with E21

Hydraulic System: Bosch-Rexroth form Germany; Oil cylinder: Jining taifeng; Ball screw/ Polished rod: HIWIN from TaiWan Brand;

Product Details

Quick Details

Description

  • Condition: New
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: BITUO
  • Model Number: WC67K
  • Machine Type: Beading Machine
  • Raw Material: Sheet / Plate Rolling
  • Material / Metal Processed: Carbon Steel
  • Power: Hydraulic
  • Automation: Automatic
  • Extra Services: End Forming
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • CNC Control system: E21 Control System
  • Pressure: 250ton
  • Cutting Lenght: 4000mm
  • Back Gauge: 10-650mm
  • Electrics: Schneider electrics
  • Main Motor: Siemens from Germany Brand
  • Tubing connector: EMB form Germany Brand
  • Hydraulic System: Bosch-Rexroth form Germany
  • Oil cylinder: Jining taifeng
  • Ball screw/ Polished rod: HIWIN from TaiWan Brand



Main structure

1. All machine body is welded assembly by high quality steels from CHINA BAO STEEL ENTERPRISE. After welding procedure, the machine body will be milled to ensure the balance and precision.

2. Mechanical block inside the cylinder to avoid the beam stroke out of gauge.

3. Balance adjustment for the two cylinder synchronization possible to keep the level position.

4. The machine has been adopt ESTUN E21 CNC system, the back-gauge can go to position accurately. The precision is ±0.1MM if frequency transformer is used.

5. All the electronic elements are from CE standard European machine SIMENS, SCHNEIDER. with high stability

6. European standard dies/punch design available. Normally we use standard four V design for all dies and standard punch capable for different plate thickness design with V changeable at three sides. For European clients, we can tailor-design the single v and shaft blade punch with nut clamp. All punch and dies are use high quality T8A with hardened squnch

7. Humanistic concern security design in all details and also the scientific details through SIECC standard.

       8. Tailored working-table length and working speed for beam according to the client’s production demand.

bituo 250T4000 door frame press brake with E21

Company Profile

Nanjing Bituo Machine Tool Co., Ltd. is located in Jiangsu province Nanjing city Lishui
District mingjue Industrial Park, only 15 km away from Nanjing airport, the geographical
position is superior, the traffic is very convenient. The company covers an area of 60000
square meters, has more than 320 employees, including all types of mechanical engineers
and technical personnel 48 people, is the backbone enterprise of forging machinery
industry.
Our main products are: WP67K, WB67K, WS67K series CNC bending machine, WD67K
series of electro-hydraulic servo CNC bending machine, QC12K series CNC hydraulic
shears, QC11K series CNC hydraulic guillotine shears, press J23 series, W11 series of
three roller bending machine, Q35Y series of combined punching and shearing machine,
bending machine and die cutting machine blade, machine parts, widely used in the field
of decoration, metallurgy, ship, automobile, machinery, aviation and other professional
production.
The company passed the ISO9001:2008 international quality system certification, CE
certification, with import and export enterprise qualification certificate and certificate of
export quality, the company products have been domestic and foreign customers certainly
to the exquisite design, reasonable price, excellent quality and efficient customer service
and technical support services, products are sold in more than 20 provinces, City, area, and
exported to Europe, Japan, Southeast Asia and USA, Middle East and other countries and
regions.
The company of "quality first, customer first, honesty of purpose, do first-class enterprise,
first-class brand, tree class image of the business goals, adhere to innovation, refine on
spirit, sincerely with you hand in hand, create brilliant.
