adjustable formwork used caffolding shoring props

Inner Tube: 48.3*2.0 Outer Tube: 60.3*2.0M application: structure, water pipe, scaffolding, furniture, fluid, etc.

Product Details

Quick Details

Description

Quick Details

  • Place of Origin: Tianjin, China (Mainland)
  • Brand Name: YU XING
  • Model Number: Scaffolding props
  • surface treatment: galvanized,painted,powder coated.
  • material: Q195,Q235,Q345,10#, 20#
  • application: structure, water pipe, scaffolding, furniture, fluid, etc.
  • Safety Load (Kgs): 11.5 - 11.7Kgs
  • Cover Type Top &Base Plate: 120 x 5THmm
  • Outer Tube: 60.3*2.0M
  • Inner Tube: 48.3*2.0
  • Wall thickness: 1.5~4.0MM
  • Type: Light

Packaging & Delivery

Packaging Details adjustable formwork used caffolding shoring props
Adjustable steel prop is in a bundle with a wire which is in bare package. 2.One 20 GP container can load almost 1500 pieces of adjustable steel props.
Delivery Time Shipped in 7 days after payment



Product Description



Name

adjustable formwork used caffolding shoring props

Place of Origin

Tianjin, China (Mainland)



Size

Inner Tube Diameter (mm)

Outer Tube Diameter (mm)

Adjustable Length(mm)

Wall Thickness (mm)

(more customized size available)

40/48

56/60

800-1250

1.5-4.0







1250-1700









1550-2500









2200-3500









2500-3950









2200-4500



Material

STK400 (Q235);STK500 (Q345)

Good Market

Middle, Southeast Asia and all over the world

Cerification

ASTM, CE,ISO9000,EN,BS, DIN and JIS etc.

Surface Treatment

painted,powder coated, electro galvanized or hot dip galvanized

Color

Orange, dark red, blue,green,  or as your requst

Technique

ERW(Electric Resistance Welding)

MOQ(Minimum Order Quantity)

100 pcs

Payment

L/C at sight ;T/T 30% deposit

Package

packed in bulk or in bundle. shipped by container or as client's request

Production Capacity

1000000 pcs / month







1.) common adjustable range (closed-extended)  1.6m-2.9m,1.7m-3.0m,1.8m-3.2m,2.0m-3.6m



     2.2m-4.0m,2.4m-3.9m,2.5m-4.5m,2.6m-5.0m



 2.) diameter range on tube (inner/outer)   dia. 40/48mm, dia.48/56mm, dia.48/60mm or as your requirement



3.) thickness range on tube   1.6mm,1.8mm,2.0mm,2.5mm,3.0mm



4.) top/base plate size  120x120x3.75mm/4.5mm/5mm



5.) surface finish  painted, powder coated, zinc-plated, hot dip galvanization



6.) all technical specification are supplied as per your request.



7.) material: Q235/Q255/Q345



8.) type: light duty/medium duty/heavy duty



9.) inspection: by ourselves or by SGS or B.V or others



10.) delivery time: within 20 days after confirming the  order



==================



***Material: Q235 steel tube, prop nut and thread is casting iron.

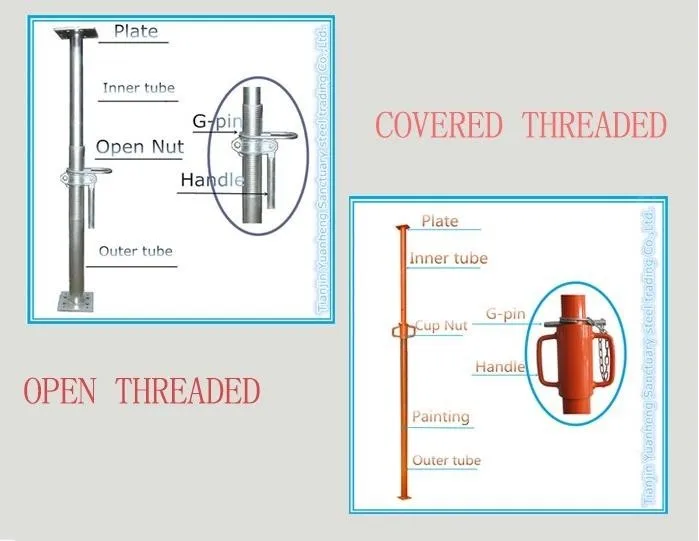

***Components: Adjustable vertical pipe support include inner tube, outer tube, prop base plate, prop nut, prop thread and lock pin.

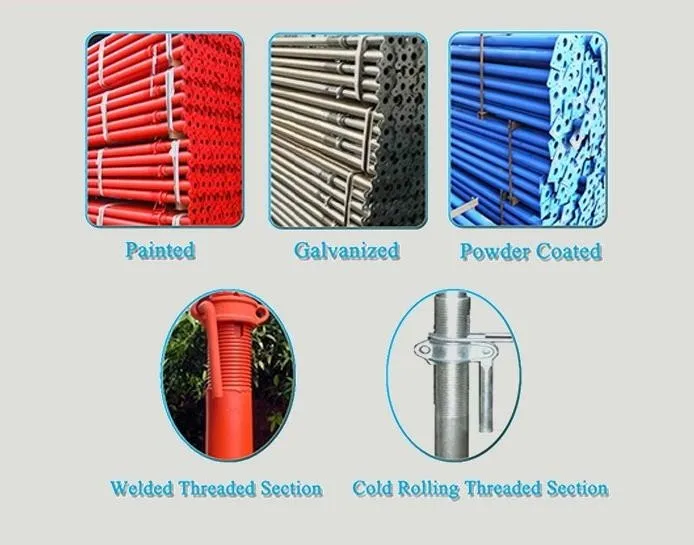

***Surface treatment: Can be dip painting, powder coated, galvanized(most endurable). Color :All RAL color as your require

*** Price: We are manufacturer of scaffolding in Tianjin with best price and high quality.

***Quality: Props are punching by automatic machines, then welded by machines and hands of skilled workers. QC will inspect welding quality every day.

***Advantage: Simple structure, reliable structure, easy to erect and dismantle, longer working life, heavy duty scaffolding, economical construction equipment, easy to get through, length adjustable.

***Application: used for vertical supporting of slab formwork and beam, for any shape building construction, for different height of building within its range.

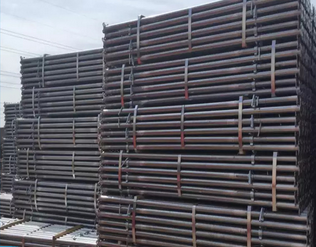

CARGO PICTURE

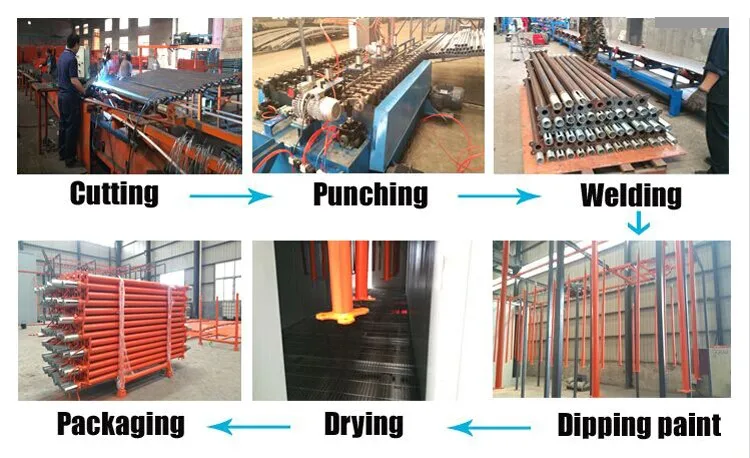

Production Flow







Company Profile

Tianjin Yuxing Steel Tube Co., Ltd. is located in the industrial park of Caigongzhuang Town, Jinghai County, on the economic belt around Bohai Sea. It has a very good production and operation environment based on convenient traffic conditions, 50km from Tianjin Binhai International Airport and 60km from TangGu Port.
Tianjin Yuxing Steel Tube Company has been engaged in the production of cold-formed and hot-rolled square,rectangular and round steel pipes(ERW,LSAW) for 8 years, with an annual production of 150,000 tons. It covered the size between 20mm-1400mm, with the thickness between 1.0mm-30mm.Except the square,rectangular and round steel pipes, we also can produce cold-formed special section pipes, open-type steels, and non-standard circular pipes. We are mainly according to these standards: EN10219,EN10210,ASTM A500,GB/T 3094-2000,GB/T6728-2002,GB/T 178-2005,JIS G 3466 and so on.
With good quality and competitive price, we warm a good reputation in domestic and international markets. We hope to build a good and long relationship with customers from home and abroad.
