Quick Details
Description
- Type: Wrapping Machine
- Condition: New
- Application: Beverage, Chemical, Food
- Packaging Type: Bottles, Cans, Cartons
- Packaging Material: Paper, Plastic
- Automatic Grade: Automatic
- Driven Type: Pneumatic
- Voltage: 380V 50HZ
- Power: 50kw
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: longway
- Model Number: ZQCD
- Dimension(L*W*H):5050*W3300*H2100mm
- Weight: 5000kg
- Certification: CE Certificate
- After-sales Service Provided: Engineers available to service machinery overseas

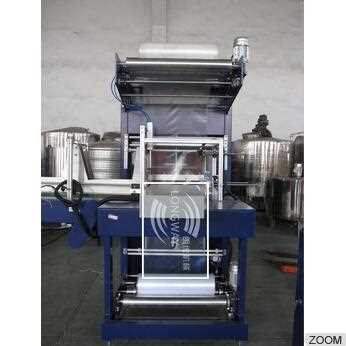

Shrink-Wrapping Packing Machine for bottles
Application Range:
The machine is developed especially for mineral oil ,industrial cartons,products and so on infusion medicine bottle combination packaging ,with stable function, and the packed articles tight and orderliness.It can be handled as a single pushing machine when high speed demanded.
Shrink-Wrapping Packing Machine for bottles
Advantages:
Applying imported PLC,which can control the machine automatically,with stable performance,precise control.
With the capacity of feedin and sorting bottles,shinking and cooling shaping automatically.
Inductive switch control the feeding of film,which can control the length of film and reduce the consumption.
Imported tranducer control for the convey motor ,which can realize stepless speed reguation.
Shrink-Wrapping Packing Machine for bottles
packing sketch-map and the flow-chart of the packing production line
Shrink-Wrapping Packing Machine for bottles
|
External Dimension
|
L5050*W3300*H2100mm
|
|
Main machine
|
L1180*W1080*H2370mm
|
|
Thermo-wind stove
|
L3890*W1050*H2040mm
|
|
Total Weight
|
1.2t
|
|
The dimension of hot thermo-wind stove
|
L3700*W920*H1750mm
|
|
Max.Packing speed
|
L600*W400*H350mm
|
|
Packing Speed
|
8-12pcs/min
|
|
Height of Converyor
|
920(±200)mm
|
|
Power-Supply
|
380V 50HZ
|
|
Working Air Pressure
|
0.6-0.8Mpa
|
|
Whole Machine Power
|
20kw
|
Zhangjiagang Longway Machinery Co., Ltd,is a hi-tech designing & manufacturing enterprise specialized in PET machinery and Filling machinery in china. We offer clients from a single machine to a complete production line, our main products include:
automatic stretch blow molding machine
injection molding machine
PET bottle blow mold
3000-36000b/h mineral water & pure water processing and filling line;
3000-36000b/h fruit juice & iced tea hot processing and filling line;
100-2000b/h 5 gallons series bottling lines;
2000-36000b/h carbonated drink processing and cold filling line;
1000-8000b/h vinegar & wine filling and packing line;
Series of plant protein drink processing drink processing and filling lines;
Complete set of combined fruit & vegetable juice (or powder) producing line;
Various of water treatment equipment.
Also we provide turkey solution aiming at client's specific requirement, our advanced technology and abundant experience ensure us to offer you reliable and economic production line.
