YX3 Series Three-phase Asynchronous Motor

1.Optimum structure 2.Unique appearance 3.Low noise 4.High efficiency 5.High protection class and high insulation class Please contact us:wangyuhua0321@163.com

Product Details

Quick Details


Detailed information:
  • New Material, new technology, high efficiency.
  • Power range from 0.75-315kw.
  • Poles are 2
  • Protecting level is IP55.
  • Cooling way is IC411.
  • Installation way meet with IEC standard.
  • Rated voltage is 380V.
  • Rated frequency is 50Hz.
  • Working temperature is lower than 40°c.
  • Altitude is lower than 1000m.

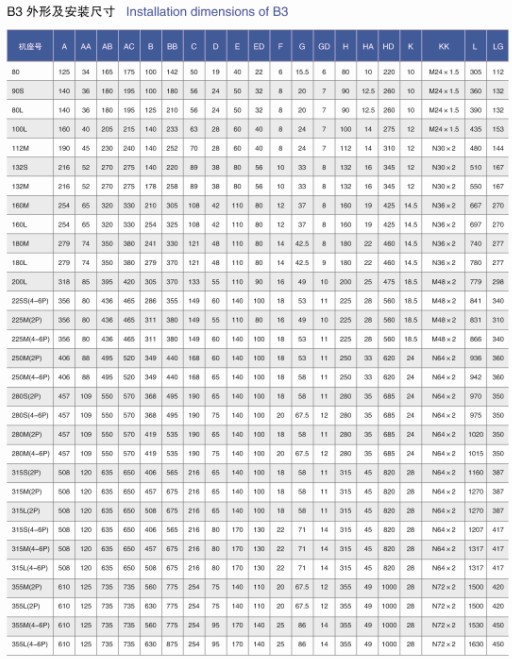

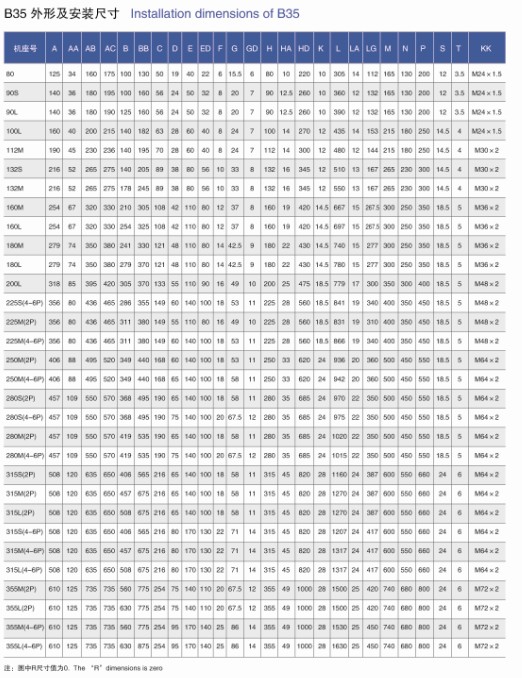

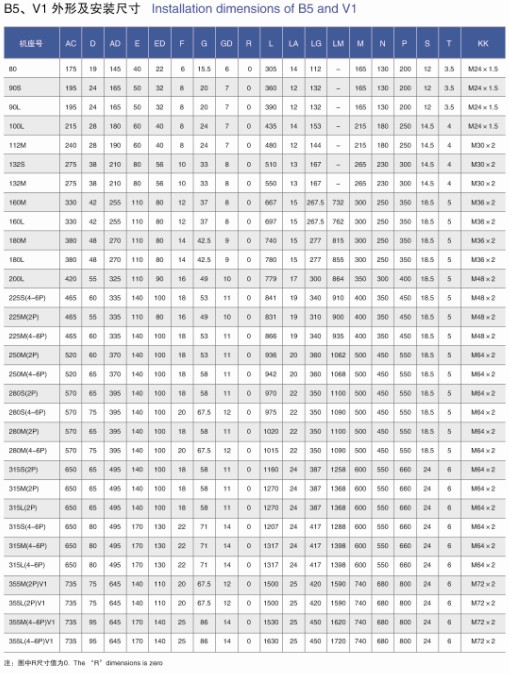

  • Mounting modes have B3, B5, B35, B34 and B14.
Your customer satisfaction is important to us.
Please contact us and let us solve the problem together.


Company Profile

  Founded in 1990s, Jiangsu OiLiHi Motor Co., Ltd is located in Changzhou city, Jiangsu Province, adjacent to Shanghai, enjoying convenient transportation.

     Jiangsu OiLiHi Motor owns one subsidiary and nine workshops, equipped with a variety of metal cutting equipment, more than 400 sets of sophisticated detection equipment, four automatic production lines and water curtain spray suspension lines.

     Its leading products include Y/Y2/Y3/YX3/LE/YEJ/ YVP series motor ranging from 0.75 kilowatt to 315 kilowatt and R/F/K/S series reducers. They enjoy high reputation among customers both at home and abroad.

     In 2010, it had a subsidiary:Jiangsu OiLiHi International Trading Co., Ltd., expending its business to 38 countries and regions.
