Quick Details
Parameter
Display Type : LCD screen with EL backlight
Operating Principle : P-E (pulse-echo), E-E (echo-echo) with dual-crystal probes(Only for UM-1D)
Repeatability : 0.1mm
Display Resolution : 0.1mm, 0.001inch
Units : inch or mm
Calibration Mode : Zero Calibration, Two-point Calibration
V-Path Correction : Automatic
Update Rate : 4Hz
Languages : English and Chinese
Operating Time : Up to 200 hours with alkaline batteries(wihtout backlight)
Description

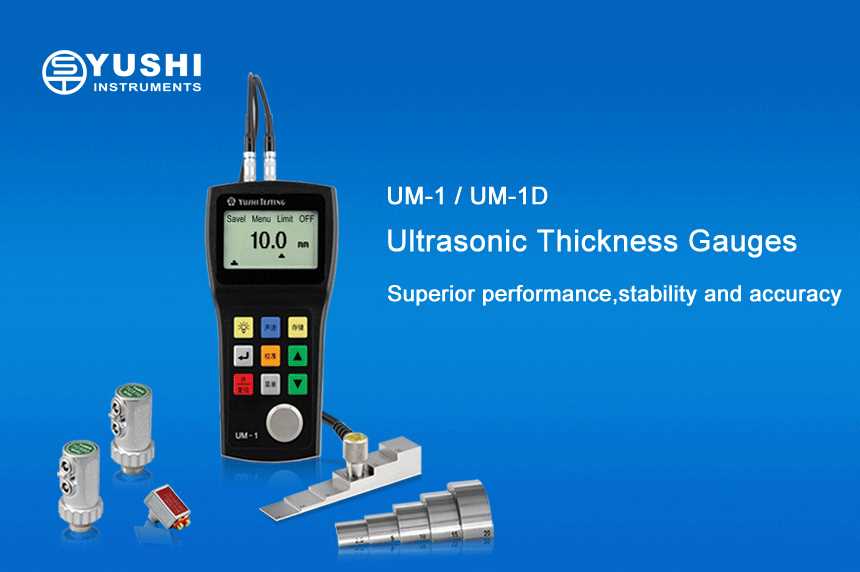

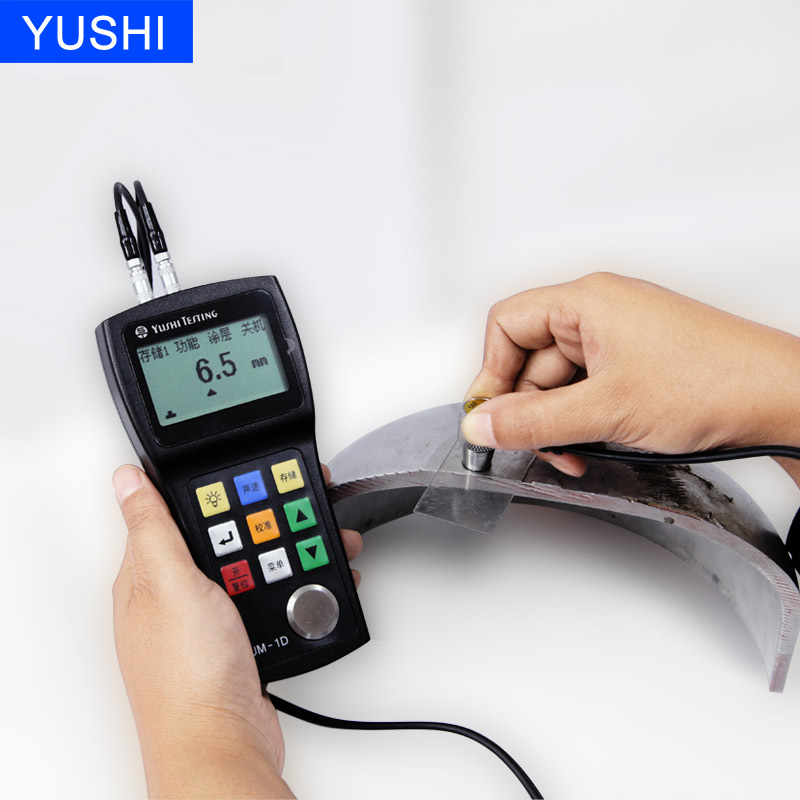

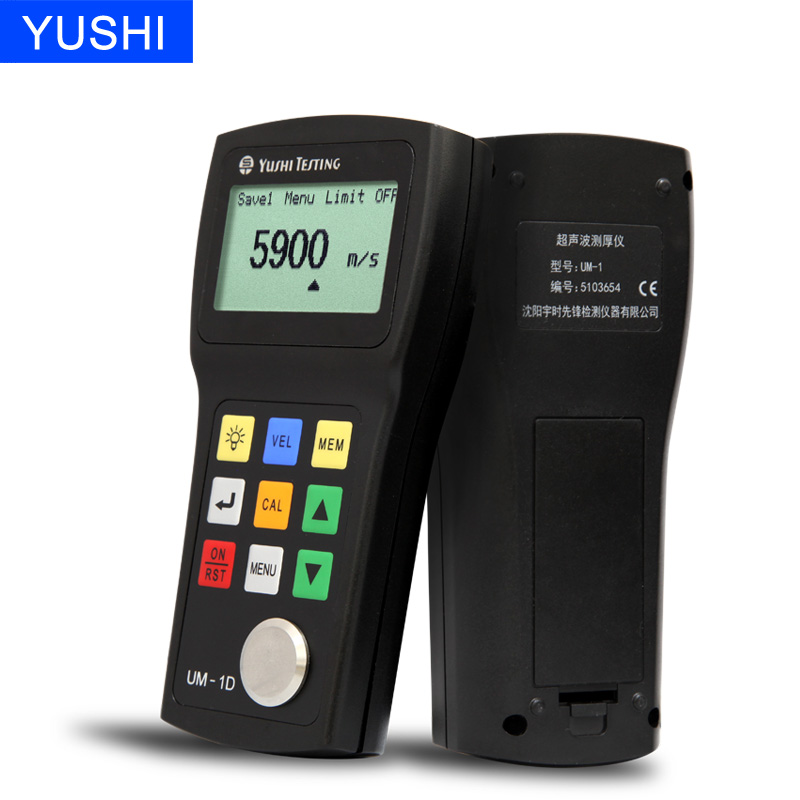

YUSHI UM-1D Digital Thru Paint/Coating Ultrasonic Thickness Gauge
Brief Introduction
0.1mm/0.001inch Resolution, 500 Thickness Values can be stored, Alarm Mode, Minium Capture, Two-point Calibration, Automatic V-Path Correction and Thru Painting Function etc.
Application
UM-1 series ultrasonic thickness gauges is used for measuring Metal and Nonmetal Materials, include Plastic, Steel, PVC and Glass Plates and Pipes. It can be widely used in the fields such as manufacturing and metal processing, etc. It can also make detection on various kinds of pipes and pressure vessels of the manufacturing facilities about their thickness lossing after corrosion.
Feature

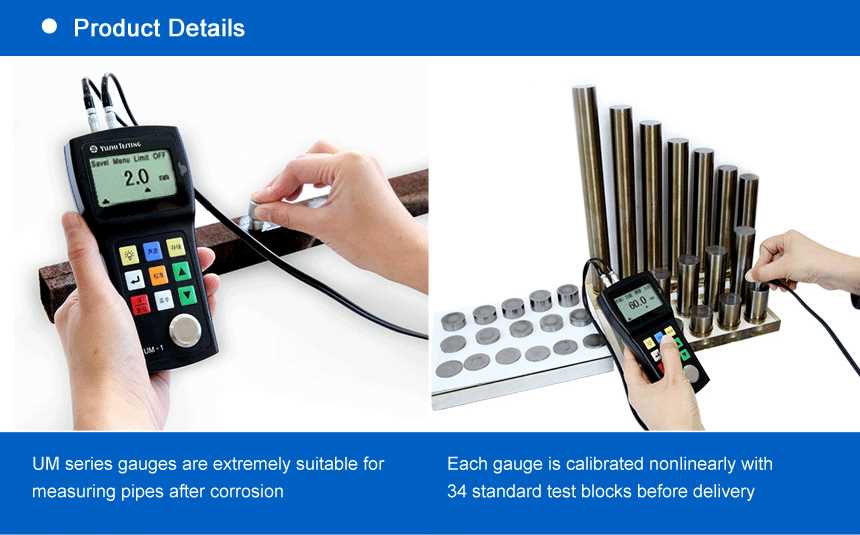

Details

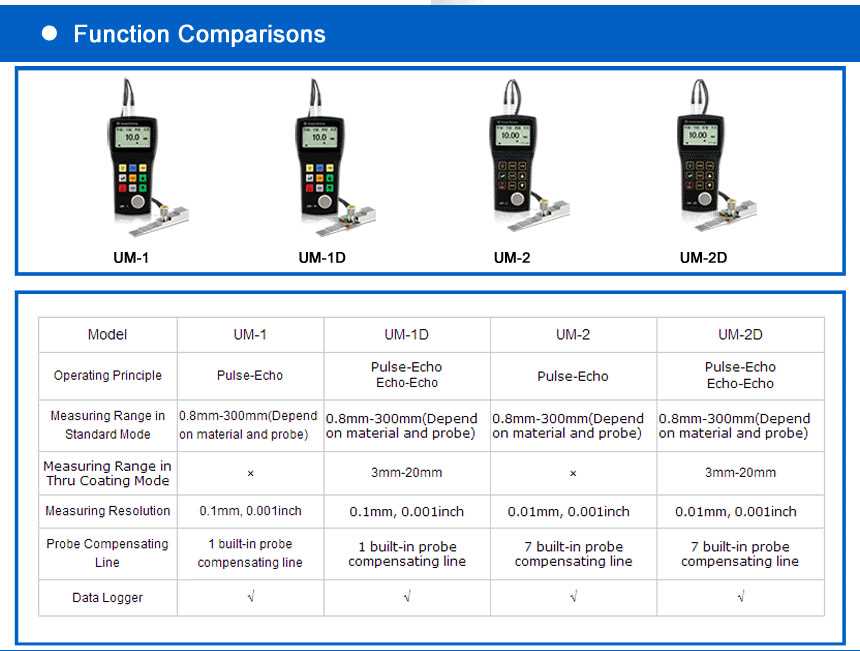

UM-1 Series Ultrasonic Thickness Gauges Function Comparisons
Certifiaction
More about Us
As one of the professional manufactures and suppliers of NDT products in China. YUSHI own the independent intellectual property rights and honorably have the national patents for new products. Over 20 years’ NDT experience, we have a strong R&D team for technical support and extending new products year by year, we aim to provide our customers with reliable quality, high performance products, fast delivery, satisfactory service and competitive price.
Our products including serious ultrasonic thickness gauge, ultrasonic flaw detector, coating thickness gauge, leeb hardness tester, UV Lamp, industrial LED X-ray film viewer, black-white densitometer, X-ray flaw detector and various related accessories. Now we have been doing export for 10 years and covered more than 30 countries, and won good reputation from our domestic and foreign customers. We welcome you visit to our website to learn more about our products and service.
