Quick Details
Description

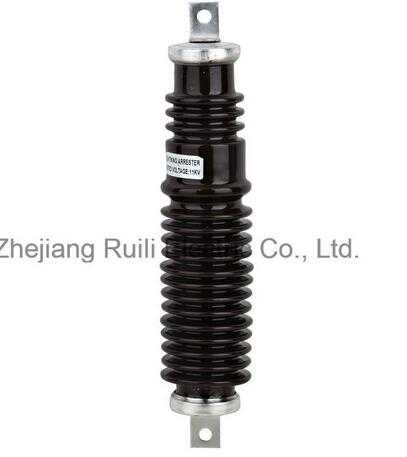

- Model NO.: Y5W-11
- Installation: Parallel Arrester
- Operation Voltage: High Voltage
- Certification: ISO9001, SGS
- Rated Voltage: 12kv
- Origin: Zhejiang, China
- Structure: Zinc Oxide Arrester
- Size: Small
- Material: ZnO
- Brand: Ruily
- Trademark: RUILY
- HS Code: 8535400000
ZnO lightning arrester is one kind of most advanced over-voltage protector at present due to its core components of resistance applying ZnO and other metal oxide to make of comparing with traditional carborundum arrester, it improves greatly V-A charcateristics of resistance,increases the getting through ability of resistance,thereby it brings fundamental,change to features of arrester.
Under normal working voltage.The current passing arrester only A class,when bearing over voltage.The excellent non-linear V-A features of arrester would make effect,the current passing through the arrester increase high to thousands of Ampere instant the arrester is under getting through state,to release over-voltage energy therefore it effective limits the damage to power transmission equipments due to over voltage.
Main technical parameters:
|
Model Type
|
Rated Voltage/kV
|
MCOV/kV
|
Steep Current Impulse
|
Switching Current Impulse
|
Lightning Current Impulse
|
2000s Square Wave Impulse Current Withstand
|
4/10 S High Current Impulse/kV
|
|
HY5W-3
|
3
|
2.55
|
9.5
|
7.7
|
9
|
100
|
65
|
|
HY5W-6
|
6
|
5.1
|
19.5
|
15.4
|
18
|
100
|
65
|
|
HY5W-9
|
9
|
7.65
|
28.5
|
23.1
|
27
|
100
|
65
|
|
HY5W-10
|
10
|
8.4
|
36
|
30
|
23
|
150
|
65
|
|
HY5W-11
|
11
|
9.4
|
40
|
33
|
30
|
150
|
65
|
|
HY5W-12
|
12
|
10.2
|
38
|
30.8
|
36
|
100
|
65
|
|
HY5W-15
|
15
|
12.7
|
47.5
|
38.5
|
45
|
100
|
65
|
|
HY5W-18
|
18
|
15.3
|
57
|
46.2
|
54
|
100
|
65
|
|
HY5W-21
|
21
|
17
|
66.5
|
53.9
|
63
|
100
|
65
|
|
HY5W-24
|
24
|
19.2
|
76
|
61.6
|
72
|
100
|
65
|
|
HY5W-27
|
27
|
21.9
|
85.5
|
69.3
|
81
|
100
|
65
|
|
HY5W-30
|
30
|
24.4
|
95
|
76.5
|
90
|
100
|
65
|
|
HY5W-33
|
33
|
26.8
|
104.5
|
84.7
|
99
|
100
|
65
|
|
HY5W-36
|
36
|
29
|
114
|
92.4
|
108
|
100
|
65
|
|
HY5W-42
|
42
|
34.1
|
132.3
|
100.1
|
126
|
100
|
65
|
ZheJiang Ruili Electric Co., Ltd is an all-around advanced technology enterprise who is turning produce, develop and study together in the industry of high voltage of (power line, power station, locomotive) Composite Insulator, Zinc Oxide Surge Arrester, Fuse Cutout. And Isolateswitch.
Our company bases itself upon high starting-point, high quality, high Level., carries out ISO9001 Quality Management System comprehensively, have established complete Quality Quarantee System. Our company have advanced Researching and Developing, Testing, Produce machines and also have a strong engineering technology team which establishe the steady foundation of guaranteeing the quality of our products. The products of composite insulator, fuse cutout, zinc oxide surge arrester and isolate switch are test eligible by Quality Inspection and Testing Centre of Electric Equipment Ministry of Electric Power, P. R. Of China, and China National Centre for Quality Supervision and Test of Insulators and Surge Arresters.
And the products comform to international IEC61109, IEC60099-4, IEC600282-2, 291, 644, 787and national GB/T16927.1, GB/T8952 GB/T15166\15166.3 standards. Our products are widely sold domestic and abroad which export to South America, Africa, Middle East, Southeast Asia, etc.
