Quick Details
Description
- Condition: New
- CNC or Not: Normal
- Power Source: Hydraulic
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: JLS
- Model Number: Y32-630T
- Voltage: Customized
- Power(W): 22kw
- Weight: 5 tons
- Dimension(L*W*H): 3230x2060x2500mm
- Certification: CE ISO
- Warranty: 12months
- After-sales Service Provided: Engineers available to service machinery overseas

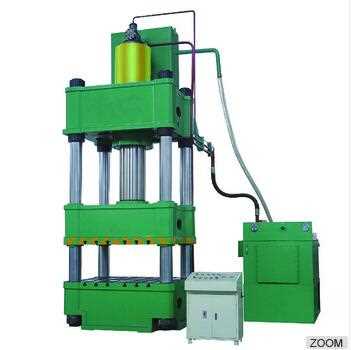

- Product name: Handle punching machine embossing pressing machine
- Keyword: Hydryalic Press
- Function: Hydraulic pounching and pressing
- Application: metal, composite material etc hydraulic pressing and forming
- Type: Four Columns
- Color: Optional Color Hydraulic Press
- Material: Carbon Steel
- Rated force: 3150 KN
- Slid stroke: 800mm
- Max. hydraulic pressure: 25Mpa
1. Features
A. Good structure design: simple, economic and widely used four column, with high strength, fine presicion, great bias resistance.
B. Integrated hydraulic system: stable movation, long life span, little pounching strength, and reducing the leakage among pipe lines.
C. PLC control: high sensitivity and stability, good flexibility.
D. Multi optional operation: regulation, manual, single cycling etc operations optional.
2. Application
Four colum hydraulic press is widely used of heat forming in cars, military project, space flight industries, such as glass fiber materials, GRP, FPR, SMC, BMC products. It has beed used in metail pounching for various metal products.
|
Item
|
Unit
|
100T
|
200T
|
315T
|
500T
|
630T
|
1000T
|
|
Rated force
|
KN
|
1000
|
2000
|
3150
|
5000
|
6300
|
10000
|
|
Liquid pressure
|
Mpa
|
25
|
25
|
25
|
25
|
25
|
25
|
|
Slide stroke
|
mm
|
600
|
800
|
800
|
1200
|
1200
|
1600
|
|
Opening height
|
mm
|
900
|
1200
|
1200
|
1600
|
1600
|
2000
|
|
Ejection stroke
|
mm
|
150
|
170
|
180
|
180
|
180
|
200
|
|
Ejection force
|
KN
|
315
|
630
|
1000
|
1500
|
2000
|
3150
|
|
Mould opening force
|
KN
|
200
|
400
|
630
|
1000
|
1250
|
2000
|
|
Demoulding force
|
KN
|
100
|
200
|
500
|
500
|
500
|
500
|
|
Verticle speed
|
mm/s
|
200
|
200
|
200
|
200
|
200
|
300
|
|
Working speed
|
mm/s
|
1-6
|
1-6
|
1-6
|
1-6
|
1-6
|
1-6
|
|
Returing speed
|
mm/s
|
100
|
100
|
100
|
150
|
150
|
200
|
|
Pre-pressing speed
|
mm/s
|
6-25
|
6-25
|
6-25
|
6-25
|
6-25
|
6-25
|
|
Mould opening speed
|
mm/s
|
2-25
|
2-25
|
2-25
|
2-25
|
2-25
|
2-25
|
|
Demoulding speed
|
mm/s
|
5-30
|
5-30
|
5-30
|
5-30
|
5-30
|
5-30
|
|
Efficient working table size
|
L-R/mm
|
630
|
900
|
1200
|
1400
|
1600
|
3200
|
|
Efficient working table size
|
B-F/mm
|
630
|
900
|
1200
|
1400
|
1600
|
2200
|
|
Weigt
|
Ton
|
4.2
|
12
|
22.5
|
43.5
|
56
|
112
|
|
Power
|
KW
|
11
|
18.5
|
30
|
45
|
75
|
110
|
Wuxi Julies Technology Co.,Ltd locates in Wuxi city, the production base of pulverizer grinder, dryer, mixer and hydraulic press. We specialize in various pulverizers for foodstuff, pharmaceutical, chemical products, and hydrualic press for product forming, cutting, bending. We export to America, Australia, Canada, Europe, Africa, South east countries of our machines with good perfomance and good feedback from our clients.
As the manufacturer of our machines we have the ability to customize them to fit your needs. Our team will work with you to make the best solution for your application.
We hope you enjoy our products, and if you have ideas, suggestions, or feedback, don't hesitate to connect with us. Your input is always welcome here.
