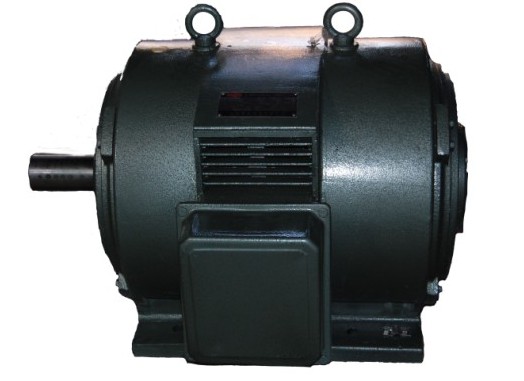

• Y series (IP23) three-phase asynchronous motors (Frame sizes 160-400)

Y series (IP23) three-phase asynchronous motors (Frame sizes 160-400)

Y series (IP23) motor can be made ??according to the requirements of users biaxial stretch. Second shaft extension can also pass the rated frequency, but only with a coupling drive. Please contact us:yudafu091@yeah.net

Product Details

Quick Details


The descriptions

Y series (IP23) motor is the protection of the general purpose squirrel-cage rotor three-phase asynchronous motors. Among,Y400 motor is the latest design of low-voltage high-power motor. Applicable to non-flammable, non-explosive, non-corrosive gas and cleaner, more natural spaces. Is used to drive all kinds of mechanical equipment without special requirements, into the machine, fans, pumps, compressors, conveyors. Y series (IP23) motor power rating and mounting dimensions in accordance with IEC international standard. The construction and mounting of the motor IMB3. Shell protection grade IP23, cooling method IC01, work for continuous working system (S1). Class B or Class F insulation.
Y series (IP23) rated motor voltage 380V, rated frequency of 50Hz; Motor running location altitude does not exceed 1000m; maximum ambient air temperature changes with the seasons, but not more than 40 ° C; minimum ambient air temperature of -15 ° C; wettest month average maximum relative humidity of 90%, while the monthly average minimum temperature not higher than 25 ° C.
Y series (IP23) motor has high efficiency, small vibration, low noise, and reliable structure, beautiful appearance point of view. Y series (IP23) motor is particularly suitable for exports, and can be imported equipment swap. Y series (IP23) motor is to improve the technical level of supporting host and run the ideal product reliability.
Y series (IP23) motor can be made ??according to the requirements of users biaxial stretch. Second shaft extension can also pass the rated frequency, but only with a coupling drive.

Model descriptions:

For example: Y (IP23) 355L2-8

Y: asynchronous motor

(IP23): International protection class symbol

355: Height (mm) of the center of the base

L2: lead plane seat second core length

8: Pole number


Rated voltage: 380V                                                    Rated frequency: 50Hz

Power range: 15~630 KW                                          Protection class: IP23

Insulation class: Class B or Class F                              Cooling method: IC411

Working mode: S1                                                      Pole number: 2、4、6、8、10、12


Company Profile

  The Shanxi Electric Motor Manufacturing Co., Ltd. (Shanxi motor factory) is the former State Ministry of Machinery Industry key enterprises in the production of small and medium-sized motor, motor has 50 years of manufacturing history, the company covers an area of 116,000 square meters, 800 employees working, which workstechnical staff of 108, with total assets of 218.77 million yuan, the annual production capacity of 100 million kW, the country's largest production base of small and medium-sized wound motor, the provincial "Trustworthy" units.
   The Company has the metalworking, electrical, stamping, assembly, tools, electrical maintenance, high pressure seven production plants, the main production equipment 533 sets. The company has a provincial-level enterprise technical centers and Shanxi Institute of special motor with strong technical innovation ability, national and updating new products Y3, the main research and development unit of the national motor industry YR3 YZR3 other series motor and industry standards the development of one of the units. The company in 1998 passed ISO9001: 1994 quality system certification, and in 2001 completed the ISO9001: 2000 Quality Management System revision replacement work.
      Production of basic series three-phase asynchronous motors, wound rotor three-phase asynchronous motors, crane and metallurgical three-phase asynchronous motors, VVVF three-phase asynchronous motors, 6kV, 10kV medium-sized high voltage three-phase asynchronous motors, varieties, specificationsfull. Of the company's technology center development and production of various special dedicated motor according to user requirements******pany product sales areas of the provinces and cities all over the country and exported to more than 30 countries in Europe and the United States, West Asia, South Africa and other. With a good reputation for quality, with several well-known domestic large enterprises to establish a long-term partnership. In order to further expand business scale, the company purchased 18 million sq m of land for the construction of a new plant, and then, the production will reach 500 million kW.
 Cuijun Lin, chairman, general manager with the staff is willing and all friends sincere cooperation and common development, we will provide a dedicated service.
