Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage
- Packaging Type: Bottles
- Packaging Material: Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: produce by client requirement
- Power: 9kw
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Hongyu
- Model Number: XGF50-50-18
- Dimension(L*W*H): 5900x3100x2400
- Weight: 11000kg
- Certification: CE ISO9001
- After-sales Service Provided: Engineers available to service machinery overseas

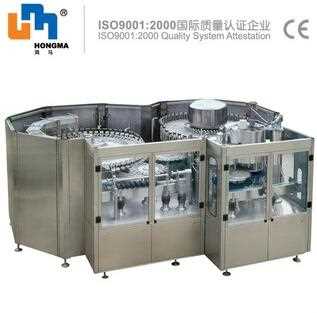

- Product name: Automatic Bottle Washing Filling Capping Machine
- Usage: Beverage Packaging
- Processing Types: Normal Pressure Filling
- Material: SUS304/316
- Warranty: 2 Years
- Capacity: 10000~40000
Usage:
The line is mainly used for washing, filling, sealing non-gas drink, such as mineral water, pure water, and so on.
Characteristics:
It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and easier. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.
Main Technical Specifications:
|
Model
|
XGF50-50-18
|
|
Production Capacity (B/H)
|
15000-16000
|
|
Washing Heads
|
50
|
|
Filling Heads
|
50
|
|
Capping Heads
|
18
|
|
Suitable Bottle Size
|
Round or Square
|
|
Diameter of Bottle (mm)
|
φ50-φ90
|
|
Height of Bottle (mm)
|
150-310
|
|
Compressed Air Pressure (Mpa)
|
0.3-0.7
|
|
Washing Medium
|
Aseptic Water
|
|
Washing Pressure (Mpa)
|
0.25
|
|
Power (KW)
|
9
|
|
Overall Dimension (mm)
|
5900×3100×2400
|
|
Weight (kg)
|
11000
|
Jiangsu Hongyu Machinery Co., Ltd. is one of the leading beverage machinery manufacturers in China. We have been in this field for over 10 years. Our company exports to more than 30 countries.
We emphasize introducing new technology and techniques. Our company not only owns the unique competitive capability, but also attracts the cooperation of domestic and international famous beverage enterprises.
Our main products include complete beverage production lines, such as equipment for bottling, barreling, canning and filling. Our products have good quality. They are sold in 29 domestic provinces, cities and autonomous regions.
Also, our company exports to more than 30 countries and regions, such as Japan, Korea, Russia, Singapore, Canada, Kazakhstan, Armenia, Ukraine, Mexico, Malaysia, Kirghiz Republic, Thailand, Indonesia and the Philippines. Our company has market shares in Vietnam, India, Pakistan, Iraq, Iran, Lebanon, Sri Lanka, Oman, Burma, Libya, Nigeria, Tanzania, Ghana, Sierra Leone, South Africa, the Sudan, Kenya, Ethiopia, Zambia, Venezuela, Chile, Congo and Nicaragua.
We would like to cooperate with all longstanding and prospective customers. Our company hopes to establish long-term stable business relationships.
