  • X-ray Pipeline Crawler ZY-S1

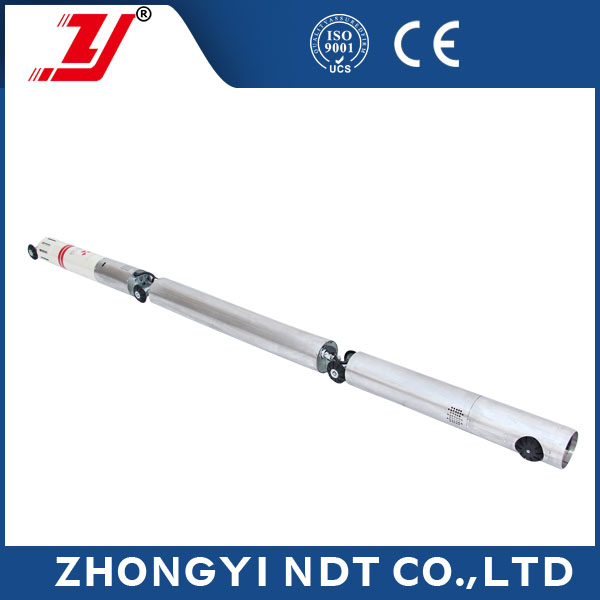

X-ray Pipeline Crawler ZY-S1

Pipeline Crawler ZY-S1
1.for pipe 6"-12" (159mm-323mm)
2.magnetic control system
3.climbing slope:15D
4. 9Ah battery

Product Details

Quick Details


Pipeline Crawler ZY-S1



ZY-S1 model pipeline crawler was newly designed and produced according to the International market demand.It service for 6" pipeline project. After customer's using, this pipeline crawler got a very great feedback because of its good performance and high quality.






Model:   ZY-S1                                                               Locating System:  Magnetic Medium Control

Available Outside Diameter:  6"-12"                       Crawler Dimensions: 2930mmx Φ125mm


Position Precision: ±3mm                                         Moving Distance: 6km( round trip)

Crawler Weight: 40kg                                                 Battery: 9Ah Li Battery

Battery Weight: 19kg                                                  Max. Climbing Slope: 15°

Turning Radius:≥ 10D                                                Drive Type: Two Wheels Driven

Full Charge Exposure: 40min                                  Crawling Speed: 15m/min

Suitable X-ray Generator: XXHA-1005L


X-ray Generator


X-ray Generator:  XXHA-1005L                                 Max.Penetrate: 10mm

Min.Diameter: 125mm                                                 Generator Dimension: Φ125mm x 940mm

Generator Weight: 14kg                                             Generator Voltage: 100kv

Focus Size: 1.0 x 2.5mm                                            Radiation Angle: 360° x 40°

Exposure Time: 0-5min                                              Anode Target: Cone Target

Operate Temp.: -20°C~+75°C                                    Insulation Material: SF6 Gases

Available Humidity: ≤90%







Company Profile

Located in the Northeast of China, Dandong Zhongyi Electronic Co., Ltd. is an ISO9001:2008 certified organization. We are top 3 professional Chinese manufacturer.Our main products are Industrial Radiology X-ray NDT equipment, including X-ray pipeline crawler,Portable x-ray machine, LED film viewer, and the main spare parts of x-ray generator. With more than 10 years' experience in the field of Industrial X-ray NDT equipment, our company design and develop the machines based on the feedback from our clients.We keep trying to make our machine better and better for your using.

X-ray NDT equipment is widely used in the industries of shipbuilding, mechanical manufacture, aerostatics, railroads, pressure vessels, boiler, petroleum, chemicals and national defense. Our company has a complete set of manufacturing facilities to produce the key parts of X-ray NDT equipment, such as X-ray tubes and HV coils, which ensure the good quality of our equipment. We gather experienced engineers, who are doing their best to provide excellent products and high quality services, to meet the requirements of customers from at home and abroad. Our products have been warmly welcomed by our customers and we have won a good reputation with continuous improvement and innovation.

Persisting in the business concept of "excellent products with honesty and faithful credit" and based on the development strategy of "client foremost", we'll continuously improve our product quality and services to set up "Zhongyi" Brand.
