  • Window Machine Single Head Heavy Corner Crimping Machine

Window Machine Single Head Heavy Corner Crimping Machine

Used for aluminum frame and sash corner crimping, especially for the high-quality profile, such as thermal bridging profile.

Product Details

Quick Details Parameter

name : Window Machine Single Head Heavy Corner Crimping Machine

Description

Specification:

  1. Used for aluminum frame and sash corner crimping, especially for the high-quality profile, such as thermal bridging profile.
  2. Hydraulic system driving, ensure a stable working.
  3. Synchronous feeding of the level (left and right side) pushing knives by link with one hydraulic cylinder driving, which avoid the corner deform and enhance the corner connection efficiently.
  4. This machine has this feature: convenient operation thus make less error in processing.
  5. Distance of tool knife can be adjustable, as the screw thread connection easy working for tools.
  6. It is collocate single cutter of many points crimping cutter ensure reliable crimping for all kinds of profiles.
  7. The crimping tools can be lift upper and down,which is easy for put and take profile.

Technical Parameter:

Power supply

Made to order

Operation air pressure

0.5~0.8Mpa

Motor power

1.5KW

Air consumption

20L/min

Rating pump pressure

48KN

Combining height

Max. 120mm

Cylinder stroke

85mm

Orientation adjustment range

50mm

Combining pressure

16Mpa

Dimension

1850×1680×1300mm

Weight

400kg

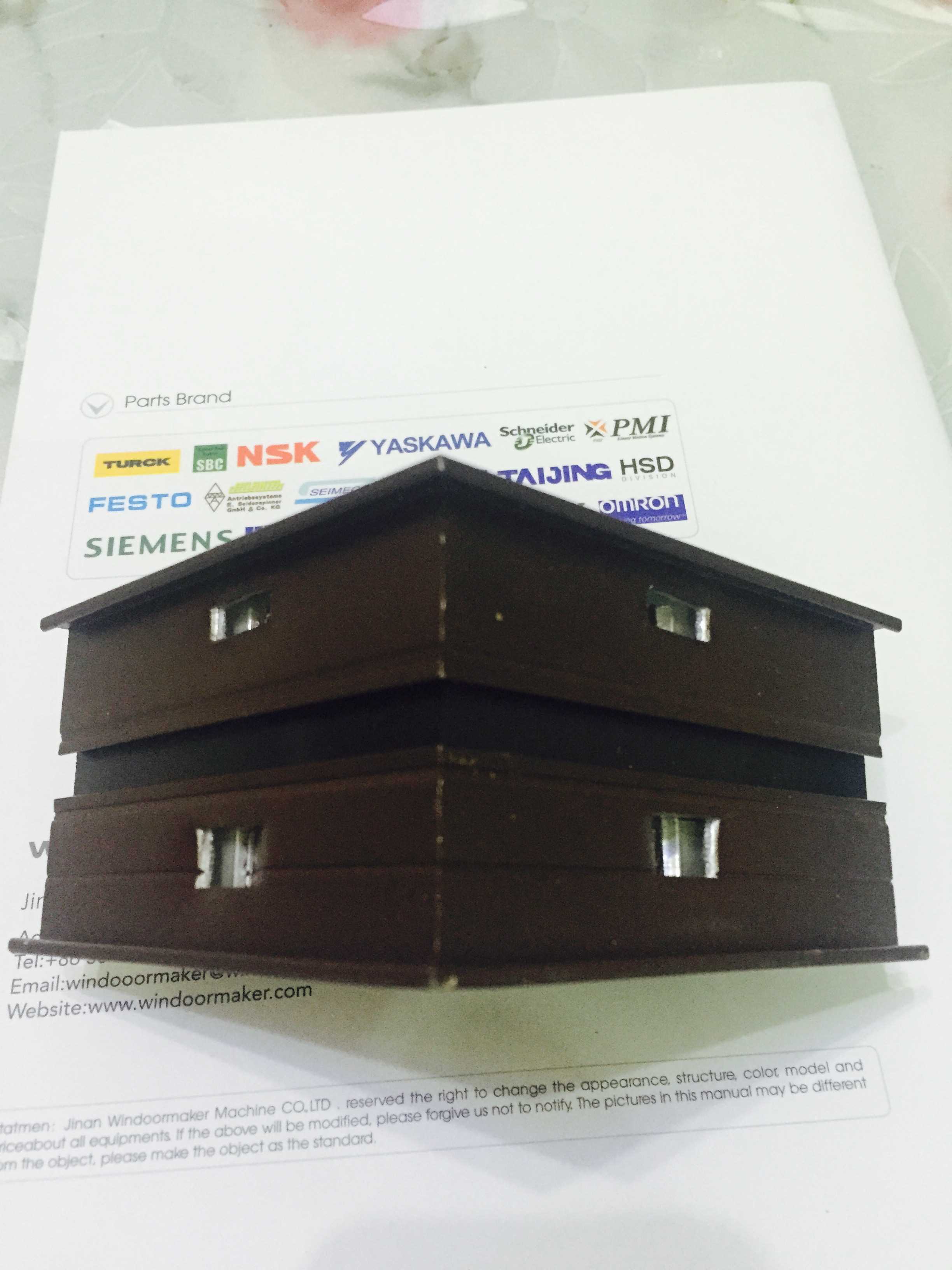

 crimping machine  finished corner

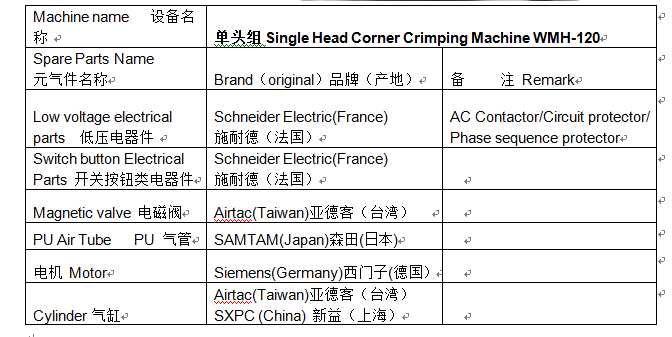

spare parts

Company Profile

Windoormaker is an engineering company that has been in business for over 10 years which specialized in the manufacture and supply the UPVC & aluminum window and door machines.

Windoormaker is a factory with cover area of 2600 m². During the years developing, has made many devotes of machine improving , introducing new equipment and technology innovation for the production.

Windoormaker team has 18 years of experience of manufacturing UPVC & aluminum window and door machines, and the knowledge of UPVC & aluminum window and door fabrication process, to supply the customers with latest newly designed machines which can produce the high quality window.
