Well known Rail Equipment NZG-31 Railway Rail Driller Introduction
NZG31 internal combustion rail drilling machine is used for the drilling works of rails 43KG/ m ~ 75KG/ m. It is featured with compact structure, selflocking function, accurate positioning, high drilling precision. It uses hollow drill, or
be clamped with φ13.5 twist drill.It is necessary tool for railway maintenance, repairing and overhaul operations.
Well known Rail Equipment NZG-31 Railway Rail Driller Parameter
|
Model
|
NZG-31Internal Combustion Steel Rail Drilling Machine
|
|
Internal Combustion Engine
|
Gasoline Engine GX35
|
|
Rate of Power
|
1.2KW
|
|
Rotate Speed without load
|
≥270r/min
|
|
Drilling Diameter
|
Φ31,Φ13.5,Φ9.8
|
|
Drilling Time
|
≤40s
|
|
Weight
|
17KG
|
|
Dimension
|
650×230×250mm
|

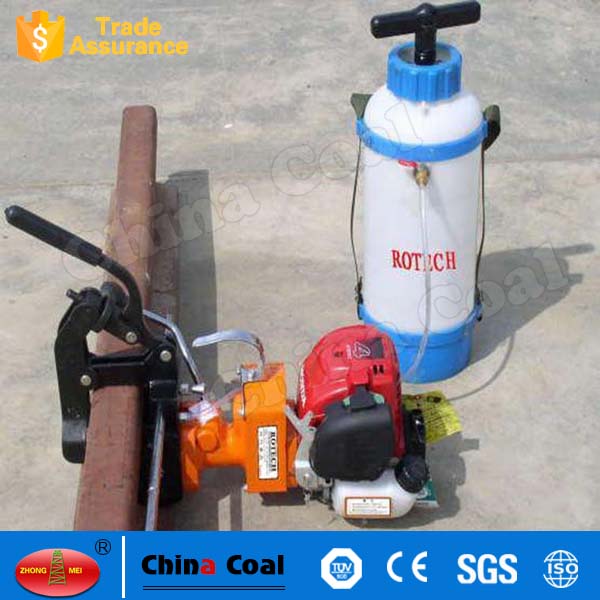

Well known Rail Equipment NZG-31 Railway Rail Driller Photos
