Quick Details
Description
- Condition: New
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Krrass or OEM

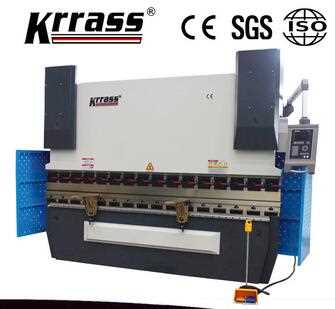

- Model Number: aluminum bending machine
- Machine Type: Press Brake
- Raw Material: Sheet / Plate Rolling
- Material / Metal Processed: Carbon Steel
- Power: Hydraulic
- Automation: Automatic
- Extra Services: End Forming
- Certification: ISO 9001:2000
- After-sales Service Provided: Engineers available to service machinery overseas
- Product name: aluminum bending machine
- Machine: press brake machine
- Price: Affordable
- warranty: 2 years warranty
- Certificates: CE&ISO
- Another name: plate bending machine Pressbreak price
- Company: press brake Manufacturer, factory
- Color: optional
- Namde: Hydraulic Delem CNC ACL,Amada.Yangli, Yawei, YSD, JFY,LVD Press Brake
1. Standard Equipment:
Delem DA52S CNC control System
Powered Depth Y1-axis&Y2-axis&X-axis&V-axis&Back gauge X-axis (X-axis 0.01mm/Y1/Y2-axis 0.01mm)
Servo motor control block
HIWIN Ball screws & Polished rod with 0,01mm accuracy
Plate Support Arms
Germany Bosch-Rexroth Hydraulic
Germany EMB Tubing connector
Germany Siemens Main Motor
Tele mecanique/Schneider Electrics
Hydraulic &Electrical overload protection
Top and Bottom Tooling(86°,R0.6mm)
Safety Standards(2006/42/EC):
2. Safety Equipment:
1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009
Front finger Protection(Safety light curtain)
South Kacon Foot Switch(Level 4 of safety)
Back metal safe fence with CE standards
Safety relay with Monitor the pedal switch and safety protection
3. Delem DA52S CNC Control system:
The compact DA-52s is a complete CNC solution for conventional as well as synchronised press brakes.
The panel based control, capable of controlling up to 4 axes, can be integrated in cabinets as well as in an optional pendulant arm housing.
Equipped with the Delem user-friendly user interface, the DA-52s provides all main press brake functionality.
The unique ‘hotkey’ navigation gives direct access to the programs in memory and enables quick and easy programming of a product. All common bend parameters are located on one page. For advanced parameters an additional page can be selected.
Angle programming of the Y-axis, crowning function and pressure control are standard on board.
USB interfacing enables the use of memory sticks as a fast product and tool backup medium.
DA-52S features
Quick, one page programming
Hotkey navigation
7” VGA colour TFT
Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
Crowning control
Tool/material/product library
USB, peripheral interfacing
Advanced Y-axis control algorithms for closed loop as well as open loop valves
Founded in 2008, Nanjing Klaus CNC Machinery Co., Ltd. is located in the National Spark Technology- Intensive Areas -- Concentrated District KOK Industrial (341 Road), close to Nanjing Airport. Our geographical position is superior and the transportation is very convenient. Our company covers an area of 160 acres with the registered capital of 32,000,000 Yuan. We have more than 320 employees, including all types of engineering and technical personnel, serving the company R&D, production, and customers' service. At the same time, we have our own sales companies in each major and medium city.
In 2008, we set up a joint venture company named Nanjing Claus CNC Machinery Co., Ltd., which is committed to the development of a new type of RAS series hydraulic guillotine shears and an annual output of 500 sets of APB series of high-end CNC machine tools and other items. This machine has the advantages of long service life, high precision, simple structure and easy operation, low failure rate, easy to repair.
Our company has established a perfect marketing service system. Our main products include RAS guillotine shears QC12Y, QC12K series of hydraulic, CNC shearing machine, ZYS series of electro-hydraulic servo CNC shearing machine, WC67Y, WC67K series of hydraulic, CNC bending machine, ZYB series of electro-hydraulic servo CNC bending machine, punching machine, bending machine, single column hydraulic machine, four hydraulic machine. Our products are widely used in decoration, metallurgy, ship, automobile, machinery, steel structure and other specialized areas of production. With exquisite design, reasonable price, excellent quality, efficient after-sales service and technical support by domestic and foreign customers, our products sell well in domestic more than 20 provinces and are exported to Europe, America, South America, Africa, Southeast Asia and the Middle East and other 40 countries and regions.
We hold "hundred percent customers' satisfaction" as our goal, providing timely and efficient after-sales services to our customers. We are appraised as "Nanjing Metal Forming Machinery Leading Enterprises", "High-Tech Enterprises In Jiangsu Province", "Private Technology Enterprise" and "City Specialization New Enterprise". In the future, we accelerate the formulation and implementation of enterprise trademark strategy pace, improving product quality and enhancing the overall competitiveness of enterprise.
