Quick Details
Description

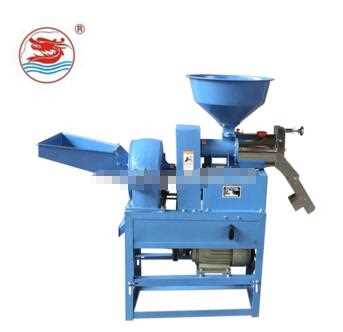

6N40X-9FC21 combined mini rice mill machinery is our new model,which is composed of 6N40X mini rice mill and 9FC21 flour mill. It is consisit of four main parts: rice mill,grain grinder, steel frame and electric motor.
working prnciples:
Start motor, belt pulley of the motor drives the belt and bearing of rice machine to rotate. Paddy in feeder will be carried to inner rice milling box by rotated bearing. Paddies in milling box squeezed by bearing ,screen and themselves. Almost every paddy is milling to husked rice and be whiten at this step. Then bran will be blow out by fan ,come into the bran bag we provided without shell and bran , husked rice will get through screen and come to discharge port of the milling box. As for broken rice,it will get through the screen on discharge port and be separated from whole rice.
| Product Name: |
WANMA factory offer rice mill combined with pulverizer |
| Model NO: |
6N40-9FC21 |
| Size(LxWxH): |
1260x430x1140MM |
| Packing Size(LxWxH): |
630x320x550MM |
| Rated Power: |
2.2KW |
| Rated Voltage: |
220V |
| Rated Motor Speed: |
2800r/min |
| Net Weight: |
63.25KG(without motor) |
| Capacity: |
>220kg/h |
| Pulverizer: |
>190kg/h |
| Structure Style Of Rice Mill: |
Disconnected-type |
| Structure Style Of Pulverizer: |
Tooth Claw Type |
Sichuan Wanma Machinery Manufacturing Co., Ltd. was established in 2000.Mainly involved in the manufacturing of agricultural mechanical products, such as grain dryer, combine of rice polisher, wood crusher,grain processing combined machine,rice pulverizer,mini grain haverster,corn thresher,rice milling machine,grinding machine,chaff cutter,fodder chopper,tea twisting machine,tillage machine etc.
Under the joint efforts of all staff,our company won the honor as: National high and new technology enterprises, Famous Brand in Sichuan Province, and the Famous Brand in Leshan City. Also the Key leading enterprises of Leshan City. Our company actively cooperate with the Sichuan research & design institute of agricultural machinery,Become a test base for scientific and technological achievements of the institute.
By far our company has more than 42 national patents,2 invention patents.Take the lead or participate in the formulation of the 1 national standards,1 provincial standard.3 technical results were identified as the leading domestic level.1 technological achievements won the first prize of scientific and technological progress.
All of our products have the typical authentication, such as ISO,SGS,IAF,CNAS,CCC. We also provide professional technology and after-sales service. We promise one year guarantee for all of our products to meet the requirement of our customer. Our products support by the powerful funds and policy of many states' government for agricultural machinery products. Our products are popular more than 20 provinces and cities in China and Vietnam, Thailand, Burma, Malaysia, Laos and other countries and regions
