Quick Details
Description
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Guangdong Jiahua Machines Corporation
- Model Number: DX03-200
- After-sales Service Provided: Overseas service center available
- Power supply: 380V 50Hz
- Air pressure: 0.5-0.8(Mpa)
- Air consumption: 80L /min
- Input power: 1.5kw
- Cutter diameter: 200mm
- Overalldimension: 850*7400*1280(mm)
- Weight: 200kg
Description

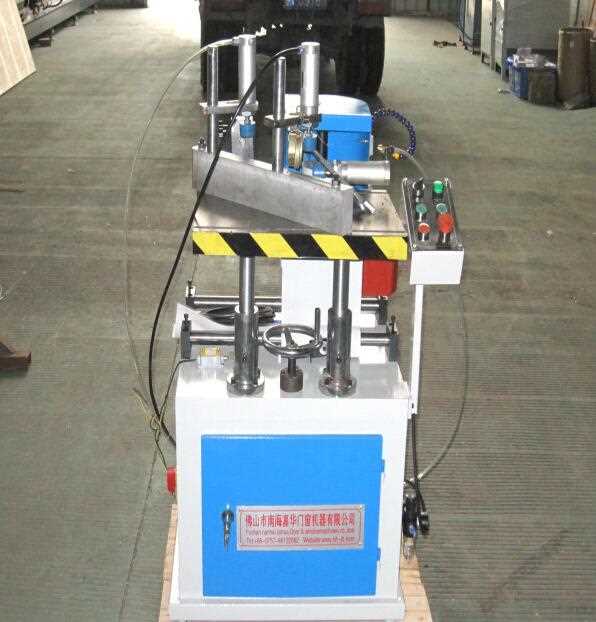

l Used in processing the side surface suepped surface and end groove of different profiles.
l Millig and cutting the side surfaces on any angles between90°~30°.
l The worktable can be adjsted up and down,widely used in all kinds of profiles.
l Tool mail shaft is connected by shaft coupling,thus the motor main shaft rotating can not affect the tool′s working accuracy.
l The feeding of cutters automatically droved by cylinder,which makes the machine work stably.
l Processing roughness: Ra12.5μm.
|
Power supply
|
380V 50Hz
|
|
Air pressure
|
0.5-0.8Mpa
|
|
Air consumption
|
80L /min
|
|
Input power
|
1.5kw
|
|
Cutter diameter
|
200(mm)
|
|
Overall dimension
|
850*7400*1280mm
|
|
Weight
|
200kg
|
Foshan Nanhai Jiahua Door & Window Machinery & Equipment Co., Ltd. is engaged in the research and development and sale of plastic steel door and window processing equipment, top grade aluminum alloy door and window equipment and hollow glass processing equipment. Our working staff members have high level intelligence and high techniques. Besides, we have perfect and complete technical center, marketing center, network center, training center, etc. We also have high-quality marketing, technical and management personnel.
With the tenet of "Minutia Decides Success and Quality Achieves Future", our company introduces advanced manufacturing equipment and skills from both at home and abroad and develops and manufactures more than one hundred kinds of products which are of three series - aluminum window equipment, plastic window equipment and hollow glass processing equipment in compliance with ISO9001:2000 criterion. Having been used and recognized by clients for many years, our equipment has safe operation and stable quality and our manufacturing techniques have ranked at the national leading level.
Whit the operating tenet of "Sincerity Creates Success", our company has set up more than 20 branches all over the country, with sales service engineers who have much experience in their serving lines to provide our users with credible skills and services at any moment. Our equipment has been exported to almost 20 countries and regions, such as Russia, Ukraine, the Philippines, Korea, Vietnam and Yemen and is spoken highly of by our overseas users.
