  • Top Quality 1500V 550A Same Dimension with Fuse Bussmann

Top Quality 1500V 550A Same Dimension with Fuse Bussmann

1.Top quality 1500v 550a same dimension with fuse bussman 2.Supplier of Emerson, Delta,Eltek,Alpha 3.High reliability

Product Details

Quick Details Parameter

Place of Origin: : Shaanxi, China
Brand Name: : SINOFUSE
Model Number: : RS306-3-D6V-550A1500V
Usage: : Low Voltage
Breaking Capacity: : High, ≥50kA
Safety Standards: : IEC
Rated Voltage: : 1500V
Rated Current: : 550
Breaking Range: : aR
Size: : 3


Top Quality 1500V 550A Same Dimension with Fuse Bussmann
a. High speed High Breaking Capacity fuse 1500v, size 3.
b. Speed:
The speed at which a fuse blows depends on how much current flows through it and the material of which the fuse is made.
Fuse have different characteristics of operating tme compared to current, characterized as fast-blow, slow-below, or time-delay, according to time required to respond to an overcurrent condition.
Semiconductor devices may use a fast or ultrafast fuse as semiconductor devices heat rapidly when excess current flows.
The fastest blowing fuses are designed for the most sensitive electrical equipment, where even a short exposure to an overload current could be very damaging.
c.The I2t value:
The amount of energy spent by the fuse element to clear te electrical fault. This term is normally used in short circuit conditions and the values are used to perform co-ordination studies in electrical networks. The energy is mainly dependent on current and time for fuses as well as the available fault level and system voltage.
d.Breaking Capacity:
The breaking capacity is the maximum current that can safely be interrupted by the fuse. Generally, this should be higher than the prospective short circuit current. Some fuses are designated High Rupture Capacity and are usually filled with sand or a similar material.

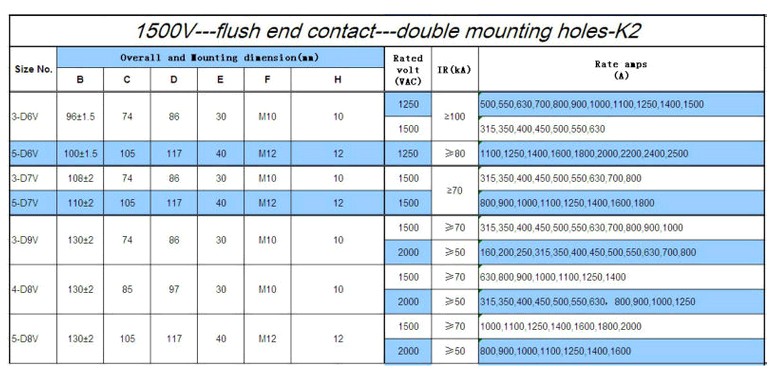

Electrical Parameters
Refer to 1500v sheet to check 3-D6V dimension

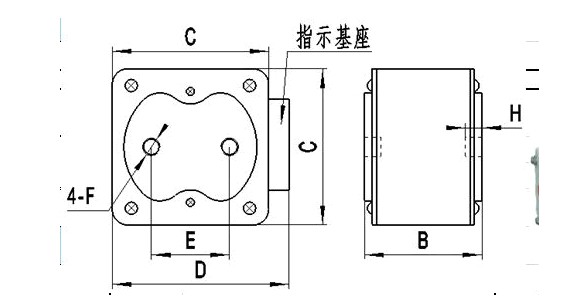

Dimension picture

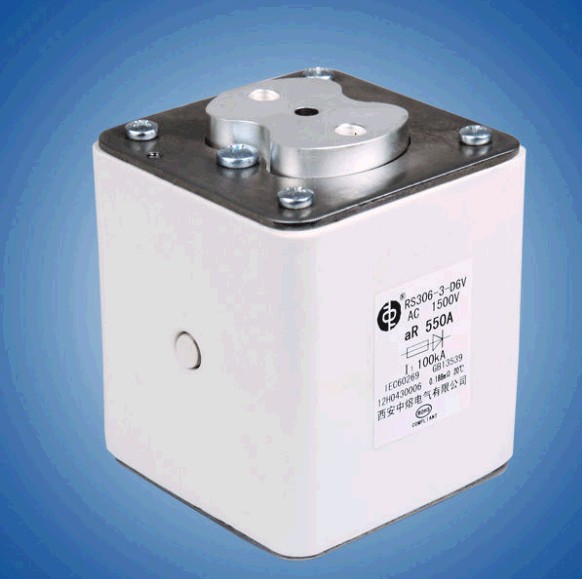

Top Quality 1500V 550A Same Dimension with Fuse Bussmann
bigger pic
Company Profile
a. Who we are?
SINOFUSE is established in April, 2007.  It is the top quality fuse manufacuturer.
SINOFUSE has more than 100 staffs now, including more than 10 technical person, 5 engineers and 2 senior engineers.
For last 6 years, SINOFUSE products has been approved by CCC,TUV,CE, and UL is on proceeding, we can look forward to a UL certificates for US style fuse in 1/1, 2013.
We insist manufacturing quality fuse according to IEC standard for customers, since we believe fuse is an important protector for your expensive system and devices.
b. What we can supply for you?
We manufacture all kinds of low voltage fuses, general protection and fast acting fuse, cartridge fuse and square body fuse, US style fuse and European style fuse.
You can refer to below picture to check all the fuse type look, they are:
Fast acting dc and ac fuse for semiconductor protection-RS306 and RSZ307,NGT.
US style fast acting fuse for semiconductor protection-RS308 and RS309
NH type general protection fuse-RT16
Low voltage dc fuse for telecom power protection-RT302
Fuse resistors-RT303
Fuse for surge protector and voltage sensitive device protection-RT310
c. Why you can buy from us?
Belief of "safety is the first"
Strong and mature R&D team
Reliable material sourcing
Reasonable price
High quality customer group, it support our comapny work well
of course, we provide best service for you!!
Production Procedure
Production Procedure

Company Profile

SINOFUSE is headquartered in Xian, China, with a branch office in Shenzhen, China. The headquarter houses a factory dedicated to all the designing, manufacturing, production of fuse products or other products and the marketing to the whole Chinese areas and global market.. The branch office is dedicated to the marketing to GuangDong area.
In the year of 2002, Xian fuse Gear Factory had been the strongest company in fuse field of China, it is purchased by Cooper Industries in 2005.
2006, Several key staffs of the previous Xian fuse Gear Factory established a new company named Xian Sinofuse Electric Co.,Ltd.(ZhongRong). They build NT/NH series fuse, NGT fuse& RS series fast acting fuse production line in the same year.
2008, SINOFUSE improved the fuse resistors process in the basis of the same products in Europe. In the later, SINOFUSE successfully marketed this fuse resistor in China. In the end of 2008, SINOFUSE R&D a new product named RT302 series 80VDC full range protection fuse, and in the beginning of 2011, SINOFUSE get the honor of National Innovation Foundation of China. Now RT302 fuse has become a standard selection in power supply line.
2009, SINOFUSE began the R&D of RSZ307 series fast acting dc fuse which has been the first company who is approved by CCC.
2010, SINOFUSE began the R&D of solar pv fuse, wind energy fuse, railway fuse etc. and began the exploring of R&D of cylinder fuse and US style fuse.
2011, SINOFUSE finished volume production of railway fuse and high voltage dc fuse.
2012, SINOFUSE finished volume production of solar pv fuse and holder.
SINOFUSE today win great reputation of quality in China, has win the second percentage in telecom power market. Has win many quality customer such as Emerson, CETC, CNR, CSR, Delta, SAC, BYD, ZTE etc.. The products are for a wide range of markets and applications, such as: Telecom power, UPS, Converter& Inverter, Railway Transportation, Wind energy, Solar energy, Power Transmission etc.
