Quick Details
Description
- Model NO.: DZ47-63(C45N)
- Operation: Electric Type
- Certification: VDE, ISO9001-2000, CE, CB, CCC, Kema
- Specification: CE, CE, RoSH, SEMKO
- Breaking Capacity: Low Voltage Circuit Breakers
- Structure: MCB
- Trademark: Tengen
- Origin: Zhjiang Wenzhou

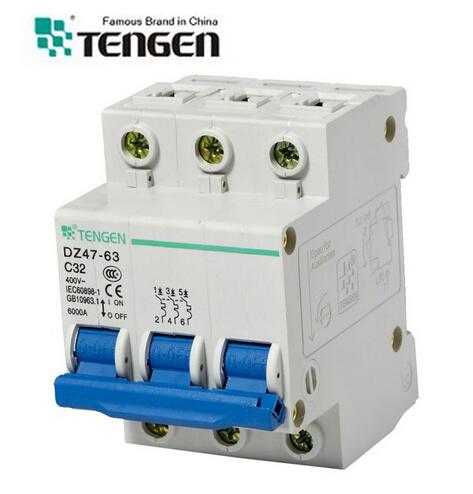

DZ47-63 high breaking capacity mini circuit breaker is used in AC50/60Hz, rated voltage of 230V
3, 4 poles 400V, rated current to 63A for overload and short-circuit
Protection as well as for unfrequented switching under normal case
It is used extensively for industry, commercial and household
This product conform to GB10963, IEC60898 standard
Main specification:
As per rated current: 1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
As per poles: 1P, 2P, 3P, 4P
As per instantaneous release type: B type (3" - 5"), C type (5 - 10"), D type (10" - 14")
Products features:
Breaking capacity highly, all rated current can be up to above 6KA
Many kinds of accessories can be chosen, in modularize and flexibility combine that make the customer install conveniently
The cover and function parts both are made of inflaming retarding, bear high temperature and bear impact plastic.
|
Model No:
|
DZ47
|
|
Rated Current:
|
1A~63A
|
|
Rated Voltage:
|
230Vac(1P), 400Vac(2/3/4P)
|
|
Characteristic Curve:
|
B, C, D
|
|
No. of Pole:
|
1P, 2P, 3P, 4P
|
|
Breaking Capacity:
|
6000A
|
|
Standards:
|
IEC/EN 60898
|
|
Certificates:
|
CE
|
Zhejiang Tengen Imp.& Exp.Co., Ltd.Is the export department for TENGEN GROUP Co., Ltd, it is one leading manufacturer and exporter in the fields of electrical apparatus, wiring accessories, hardware, fire alarm system, tools and so on, our company located in Liushi town of Wenzhou city where is the largest production centre in China for electrical products.
From 1983 to now, our company has cooperated with more than 80 factories, and produces over 20 kinds, thousands of models of high quality electric products yearly.Mainly including:
1.Electrical apparatus:Circuit breaker, AC contactor, Relay, fuse, timer, counter, distribution box, meter socket, current transformer, meter, pushbutton switch, LED pilot lamp, limit switch, pedal switch, float switch, industrial plug & socket, Stabilizer and so on.
2.Wiring accessories:Cable tie, cable clip, cable puller, cable marker, cable lugs, cable glands, terminal blocks, wiring ducts, insulated terminals, MCB insulated busbar, dinrail and so on.
3.Hardware:Flexible conduit & connector, EMT fittings, Metal switch boxes and so on.
4.Tools:Hand crimping tools, cable cutter, hydraulic crimping tool, tester, screwdriver and so on
5.Fire alarm and warning system:Fire alarm bell, electric bell, smoke detector, motor siren, buzzer, warning light and so on
Internationalization standard quality guarantee system:
The product quality of Tengen Group has been strictly controlled in each working procedure,
Many kinds of internationalization standard quality guaranteed system can be highly effective
Under company's strict monitoring.Fellowtrader commended, customer's approval can sufficiently
Make sure of our product quality.
"Tengen" was evaluated as " Chinese famous trademark", Tengen Group has obtained American
FMRC Corporation ISO9001 quality system authentication, ISO14001 environment management
System authentication, CCC authentication, European Union CE safe Authentication, American UL
Authentication and Dutch KEMA authentication and so on, at the same time, it has had the first
Side laboratory -- low voltage electric appliance test center which is the first connected with
International in China.
We promise to offer you superior products, favorable price, and timely delivery.If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
