• TNW-800 Horizontal Diaper Packaging Machine

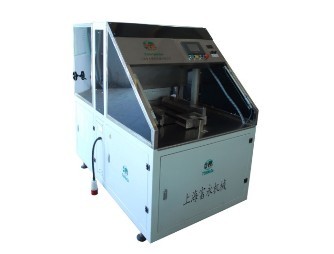

TNW-800 Horizontal Diaper Packaging Machine

TNW-800 Horizontal Diaper Packaging Machine is servo motor driving realizes stability and hi-speed.Available products: Baby/Adult diaper.

Product Details

Quick Details Parameter

Power: : 5.0KW
Air pressure: : 0.5-0.8kgf/cm2
Overall dimension: : 1050mm*1720mm*1536mm
Weight: : 500KG
Speed: : 25bags/min


Main devices:
Servo motor
Safety light curtain
Vacuum pump
Scraps collection
TNW-800 Horizontal Diaper Packaging Machine
Keyence KV-PLC and servo motor system drive the various key parts independently,
so as to guarantee the high efficiency, good stability and low failure rate.
HMI, as a user-friendly interface, enable us to timely set the relevant system parameters.
Each process unit is driven by separated servo motor.
Auto mode and manual mode
Safety light curtain guarantees the safety operation
Automatic resetting effectively controls the movement precision.
Mould folds the bags to perfect the packing quality.

Company Profile

Shanghai Tominaga Packing Machinery Co., Ltd is the first science & technology based enterprise in China specializing in designing, developing, manufacturing and trading of packaging machines for hygiene disposable products. Situated in Qingpu industrial zone, which is among the 4 largest industrial zones in Shanghai, Tominaga is the leading manufacturer in household paper packaging machine industry in China. And we are marching forward to the advanced level of international industry.

Our main products include packaging machine series, stacker & counter series, bigger series and related hygiene disposable products packaging equipments, which are mainly applied for packaging of sanitary napkin, panty liner, baby/adult diaper, roll tissue, facial tissue, kitchen tissue, wet wipes, pet wipes and other hygiene disposable paper products.
