• TDP-1 Tablet Press

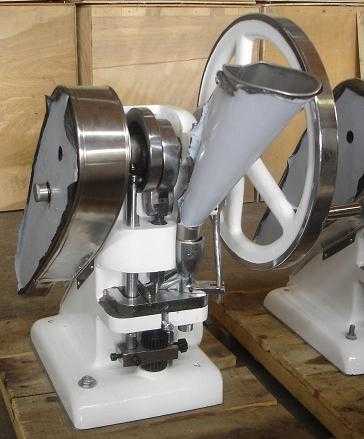

TDP-1 Tablet Press

Only one pair of punching die can be erected on this press.Both filling depth of material and thickness of tablet are adjustable.

Product Details

Quick Details

Description

This machine is used for tabletting different kinds of granular raw materials into round tablet.It is applicable to trial manufacturing in Lab or batch produce in small amount different kinds of tablet,sugar piece,calcium tablet and tablet of abnormal shape.It features a small desktop type press for motive and continual sheeting.It can also be hand-operated.Only one pair of punching die can be erected on this press.Both filling depth of material and thickness of tablet are adjustable.



Main Technical Data:

Max.Pressure

15Kn

Max.Dia of Tablet

12mm

Max.Depth of Fill

11mm

Max. Thickness of Tablet

6mm

Production Capacity

6000pc/h

Power

1p,370W, 220V, 50Hz

Overall Size

530*340*570mm

Net Weight

85kg





TDP-1 Tablet Press

Company Profile

Shenzhen Nuoya Pharmaceutical Equipment Co., Ltd. is a professional factory producing pharmaceutical machinery, through the ISO9001 international quality system certification.

Our company has been a leader in this particular sector of the pharmaceutical industry, and we are located in one of the flourishing and commercial cities of China - Shenzhen. Our equipment is widely used in pharmaceutical, food, chemical, electronic and other vocations. Our main products including: tablet press machines, punch and die sets, mixers, coaters, granulators, pulverizers, dryers, dust collectors, de-dusters, filling machines, and packing machines.

We have the best staff team, the best and the quick responsive sales and services. We have established business relationships with many countries, such as: Australia, Britain, Canada, New Zealand, Russia, Singapore, the USA, and Poland with good effect. We are confident that we can make good development in the future and we can contribute more.

If you are interested in our pharmaceutical equipments, please do not hesitate to contact us. We will give you quick response after receiving your messages.
