Quick Details
Description
- Model NO.: T1650F
- Type: Prestretching Wrapping Machine
- Application: Pallet
- Inclusion Degree: Fully Wrapped Winding Machine
- Film Frame Structure: Pre Tension
- Wrapping Size: (500-1200)mm*(500-1200)mm
- Packing Efficiency: 20-40 Loads/H
- Turntable Diameter: 1650mm
- Machine Weight: 650kg
- Voltage: 220V 1pH 50Hz
- Trademark: YUPACK
- Origin: Qingdao, China
- Packaging Type: Pallet
- Driven Type: Electric
- Automatic Grade: Automatic
- Structure: Pallet Wrapping Machine
- Series: T Series - Pallet Wrapping Machine
- Control System: PLC
- Turntable Speed: 0-12 Rpm/Min
- Turntable Maximum Load Weight: 2000kg
- Machine Size(L*W*H): 2545mm*1650mm*2280mm
- Power Comsumption: 1.5kw
- Specification: 2545mm*1650mm*2280mm
- HS Code: 84224000
Product Description

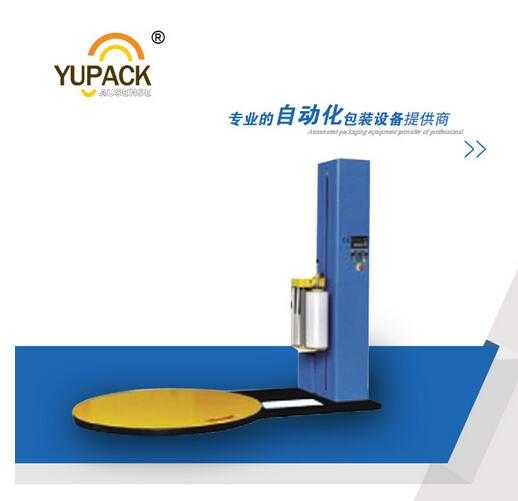

T1650F automatic pallet stretch wrapping machine is designed to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storage to protect them from tip, spill or from being damaged.
Features
1.Easy to operate
Single purpose knobs and buttons.
Permanently attached Reference Guide keeps instructions and adjustments near the operator.
Controls and film delivery system are within easy reach of operator.
2.Easy to load turntable
Low turntable top is only 85 mm from floor.
Large 1650 mm diameter helps operator center pallet loads.
Pallet loads are easily pushed up the small 2 1/2 degree incline on the optional ramp.
3.Wraps tighter with less film
Wide range of wrap force available.
Film delivery system maintains consistent wrap force for different load sizes and shapes,
fights film breaks, and minimizes film consumption.
Dispense film efficiently at all pre-stretch levels.
Non-slip coating on pre-stretch rollers helps film stretch properly.
4.Reliable load height sensing
Exclusive sensor sees a wide variety of colors and surface variations.
A simple sensor adjustment precisely sets the film overwrap at the top of the pallet load.
5.Safe operation
Emergency stop button.
Large 660 mm clearance between the mast and turntable.
Counterweighted film delivery system.
Stretch wrapper stops automatically if the film breaks.
Film Assist feature provides 5 seconds of power to the film delivery system and prevents unplanned activation of film delivery system when operator attaches film to pallet load.
6.Easy to care for
Turntable support bearings are lubricated for life of machine.
