Quick Details
Parameter
Film Width : 1000mm/500mm×2rolls
Film Thickness : 13-50 micro (adjustable)
Film Structure : A/B/C
Extrusion Capacity : 100-150kg/h (according to the film thickness)
Power Supply : 220V/50hz (adjustable)
Distribution Proportion : 15-20%/60-70%
Raw Material : LLDPE
Description

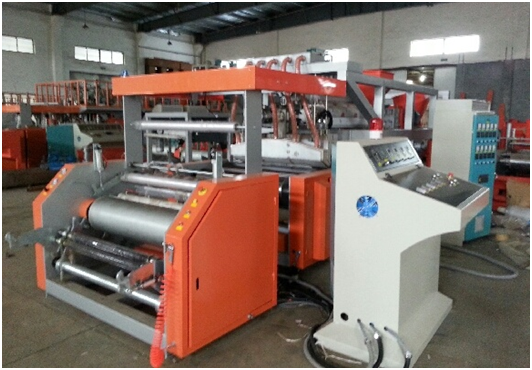

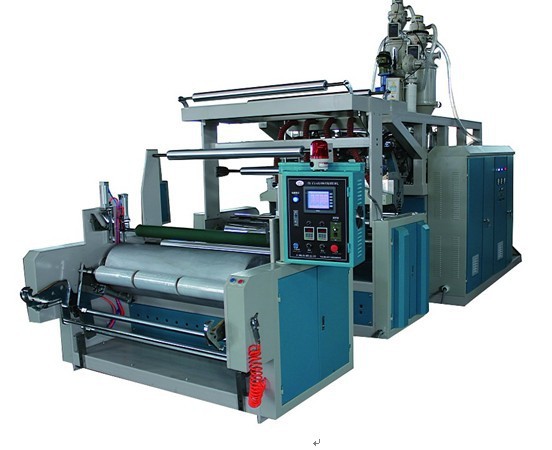

10000mm High Speed Stretch Film Machine
1. Auto Loader
2. Side feed auto-recycling machines
3.Note glue machine
4.Automatic configuration
5.Cooling towers
6.Air Compressor
7.Desiccant
8.Mechnical hand air expanding shaft automatic reset
9. Side two traction
10. Around a serging device
| MODEL |
|
TL-70-70-55-1000MM |
| Screw diameter |
|
70/55/55mm |
| L/D ratio of screw |
|
30:1 |
| Width of die head |
|
1250mm
|
| Width of finished products |
|
1000(500*2rolls)mm |
| Thickness of finished products |
|
13-15micro |
| Structure of film layers |
|
A/B/C |
| Max capacity |
|
100-150kg/h |
| Linear speed of machinery |
|
50-120m/min |
| Total power |
|
2.2kw*2 |
| Overall dimensions(L*W*H) |
|
14*6.5*5 |
| Weight(About) |
|
7T |

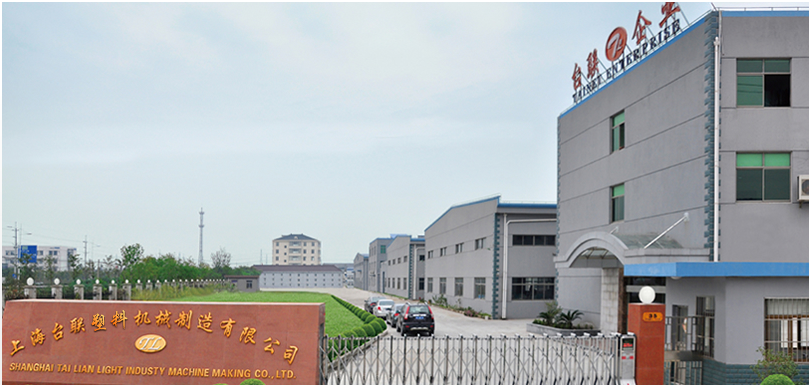

Established in 1999,covers a 24000 square meters production space Tailian is a professional enterprise specialized in plastic machinery designing,manufacturing and marketing.Our products range from plastic recycling machine,film blowing machine,bag making machine,stretching/wrapping film machine,printing machine to slitting machine,punching machine and some supporting machines etc.Located in the largest city in China--shanghai and has more than 10 years experience in this field,we have both technical superiority and geographic advantage.
Since the very beginning of our establishment,we have always taken "customer-oriented" as our management philosophy.And continuous sound growth makes us striding to well-professional.In the process of growth we never stop continuous efforts in technology innovation and pioneering.Advanced technology and scientific management make our products the best in terms of quality,function,price and after-sales service before sales among this field.Mean while we has spared no effort in technology research and development,so as to a never-stop new products series.At the same time,we often keep closely relationship with our customers to ensure that products and services closer to the market requir ments ofr the timely provision of customers'.
Now,tailian Corporation has been well-developing with abundant funds,professional and technical personnel,well-equipped and large production base,and we have developed a number of patented technologies;meanwhile we can supply the very products according to the customers'requirements as well as offer special facilities and training.Our products have a very mature market both home and abosrd.And we are always welcome your visit and discussion.
