  • Slide Switch SS-12J02

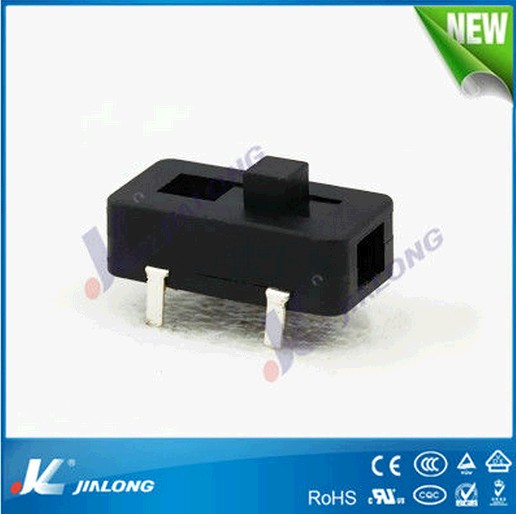

Slide Switch SS-12J02

Slide Switch SS-12J02 CE, UL, VDE, SGS, RoHs approval stabel performance, best service

Product Details

Quick Details Parameter

Place of Origin: : Zhejiang, China
Brand Name: : JL
Model Number: : SS-12J02
Max. Current: : 3A Max.
Voltage: : 250V
Mechanical Life: : 10000 Cycles


Slide Switch SS-12J02
Item No.: SS-12J02
Rating:  3A  250V  AC
               6A  125V   AC
Function: 1P2T
Travelling: 5.0mm
Operating force: 200gf ~400gf
Contact resistance: 30m Ω max.
Insulation Resistance: 100M Ω at 500V DC
Withstand Voltage: AC 1250V for 1 minute
Operating Force: -25oC~85oC
Switching LIfe: 10,000 cycles
Slide Switch SS-12J02
Slide Switch SS-12J02

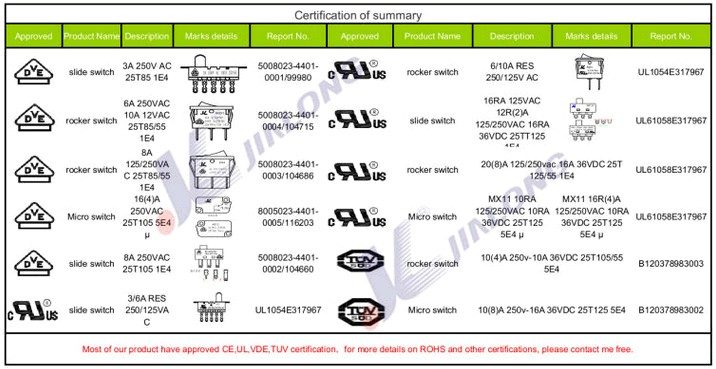

Certification list
Certification list
Packing details
Packing details

Company Profile

Zhejiang Jialong Electron Co., Ltd. is located near the national grade landscape of Wenzhou Nanxi River. Established in 1986, our company covers an area of 15,000 square meters, with twenty-five million RMB fixed assets, and 1,300 employees, including over 90 managers and more than 60 technicians. Moreover, our company has passed the evaluation of ISO9001 certification, and we have registered our brand of "JL".
Our company specializes in producing and developing over 600 kinds of turning button, boat pattern button, gentle touch button, push button and leaf switches, DC and AC sockets and other related products. With constant improvement, we have the productive ability of five hundred million pieces every year, owning fully automatic machinery, advanced technology and perfect quality administrative systems. Furthermore, we are experienced in electronic product development and research, developing different products to meet customers' requirements. With reasonable designs and stable performance, our products sell well in both domestic and overseas markets, enjoying a good reputation.
Zhejiang Jialong Electron Co., Ltd. insists on the tenet of "user superior, quality first" and the policy of "making great effort to create products with higher quality, and sincerely providing the best service for consumers".
