Simple Structure Magnetic Iron Ore Separator

Magnetic Separator,Magnetic Iron Ore Separator

1.Magnetic Iron Ore Separator

1.Model:CTB series
2.Shell Diameter;600-1200mm
3.Capacity:10-120t/h

4.Granularity blow 0.5mm
4.Separate magnetite, hematite etc.

2.Application of Magnetic Iron Ore Separator

Magnetic Iron Ore Separator is used to separate magnetite, hematite, limonite, pyrrhotite, ilmenite smaller than 3 mm in wet way. It is also used to separate iron in coal, nonmetallic ore, construction industry, etc. We can provide magnetic separators of forward flow, semi counter flow and counter flow types according to customers’ request.

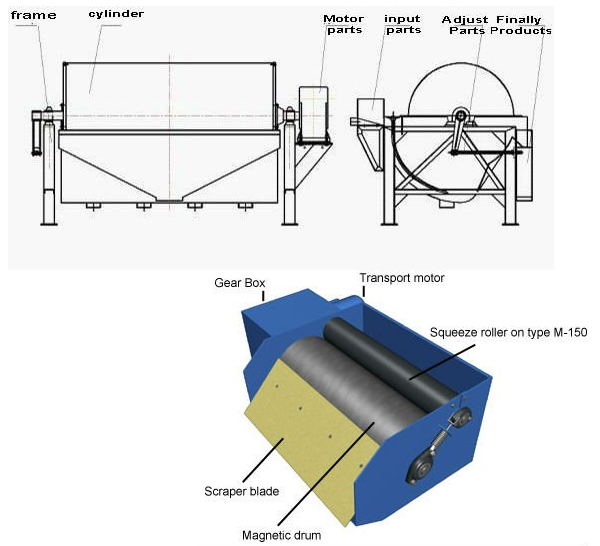

3.Working principle of Magnetic Iron Ore Separator

Slurry enters chute through ore tank firstly, and then separating zone by waterpower.  Mineral with strong magnetism is absorbed on the barrel surface, sent to concentrate discharging zone and discharged into concentrate box by water effect.  Gangue and ore with weak magnetism are discharged into a pipe in opposite direction of barrel.

4.Features of Magnetic Iron Ore Separator

1.  High magnetic intensity.
2.  Low energy consumption.
3.  Good beneficiating efficiency.
4.  Simple structure and easy maintenance.

5.Types of Magnetic Iron Ore Separator

We have various of Magnetic Iron Ore Separator ,such as CTB612, CTB618, CTB718, CTB918, CTB1018, CTB1024,

CTB1224,etc. In order to give you a responsible quotation, you can inform us the following information:

1. What’s the material you are going to deal with?

2. What’s the granularity of the material?

3. What’s the granularity of the final products are you going to achive?

4. What’s the producing capacity you are going to achieve?

Our engineers will suggest you the most suitable one for you according to your information.

6.Main Technical Magnetic Iron Ore Separator:

7.After-Sale Service:

Erection and Commissioning

Operator Training

Spare Parts Supply

Warranty Terms: More than 12 months

Delivery Time:25~30 days after receiving advanced payment

Products Certificate: CE, ISO9001:2000

8.We(Shanghai LIPU Heavy Industry Co.,Ltd) believe that you can rely on us as we provide you quite satisfactory service and products with best quality at most competitive price in the world. We are very happy if you do not hesitate to send us any of your inquiries and we will always give satisfactory services.

Shanghai Lipu Heavy Industry Co., Ltd. is a professional mining machine manufacturer in China. We are located in the international economic and financial center - Pudong in Shanghai. Lipu Heavy Industry is engaged in mining machine research, design and technical advisory services. We can provide service and technical solutions for the excavation of rock, minerals and cement in the mining and construction industries. We mainly manufacture 100-5000tpd capacity stone crushing plants, 800-3000tpd cement plants and 100-5000tpd beneficiation plants.

We focus on fine workmanship and technical innovation. We have independent development, processing and manufacturing capabilities and also have an independent R&D center and a reliable production base. Our R&D team mainly consists of mechanical engineers, chemical engineers and electric engineers. They specially supply the basic research, new product development and technical support in the field of mining machinery. Equipped with modern cutting equipment, advanced computer aided design systems and perfect three-dimensional simulation test systems, our company can ensure our products' performance.

While expanding domestic market, we have exported our rock crushers, stone crushing equipment and beneficiation equipment to Chile, Venezuela, Peru, Russia, Ukraine, the USA, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia, Vietnam, Africa, and so on, totally more than 50 countries and regions.

Our company has a group of experienced workers and on-site engineers, which ensure the advantage of production. We always strictly control product quality to make sure every set of machine is of high performance and high reliability. Every item must pass our strict quality checks prior to shipment. Our after-sales service group is ready to help customers solve technical problems. We also let engineers train your employees if needed.
