Pipe Pryer Features
1. Wide application. Not only for biomass fuel producing,but for drying materials in chemical, pharmacy,building industry.
2. Low cost, good drying effect. Invest in a little money but get considerable profits.
3. Can dry material with moisture content of below 55% and diameter of less than 3mm.
4. Low energy consumption, low noise. Easy to install and maintain.
How To Choose Air current Dryer
We offer pipe dryer in two different types which are one hot air boiler dryer and two hot air boilers dryer. For biomass material whose moisture content is less than 35%, we recommand the one boiler pipe dryer as it can eliminate more than 20% moisture content; but for those contains 35%-50% moisture contant material, the two boilers pipe dryer is necessary because of its powerful drying effect.
Flash Dryer Working Principle

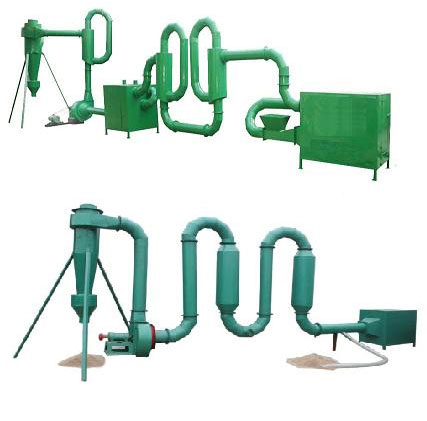

Wet biomass materials are fed into pipe dryer by conveying device, at the same time, heated air is driven to the dryer. Then the two are fully blended and move forward inside the whole pipes due to the powerful fan blower suction. Moisture evaporates when the biomass materials go through all the pipe. At the discharging hole material is released.
Pipe Dryer Technical Data
| Model |
Power |
Capacity |
Reduced moisture |
| TRM—QLHG22 |
5.5kw |
380—560kg |
10—15% |
| TRM—QLHG36 |
7.5kw |
500—700kg |
15—25% |
