Quick Details
Description
2500ml hopper volume for more flexible weighing range;
IP65 waterproof with spray water cleaning directly;
Four side seal base frame ensure stable while running;
Modular control system, more stability and lower maintenance;
Rotary or vibrating top cone is available;
Load cell or photo sensor checking to satisfy different requirements; Preset stagger dump function to stop blockage;
7" touch screen with user friendly menu for easy operation;
Checking signal connection with another equipment on the screen;
Automatic or semi-auto weighing are available;
Food contact parts free tool install and dismantle;
Multi-languages English, French, Spanish, etc is available;
Model SW-M14
Weighing Range 20-1500 grams
Max. Speed 120 portions/min
Accuracy +0.2-1.5 grams
Weigh Bucket 2500ml
Control Penal 7" Touch Screen
Power Supply 220V/50HZ or 60HZ; 12A; 1500W
Driving System Stepper Motor
Packing Dimension 1600L*1100W*1000Hmm
Gross Weight 650kg

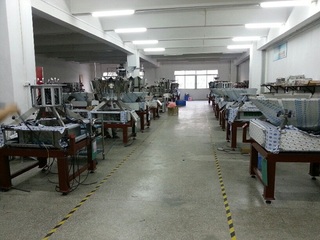

Zhongshan Smart Weigh Packaging Machinery Co., Ltd. is dedicated to modular multi-head weighing solution and supplies the related packaging machines for complete packing line.
We are an integrated company with R&D, building, marketing and after-sales service backup, who is dedicated to producing and managing weighing machines, automatic weighers, combination weighers, linear scales, check weighers, vertical form fill seal machines, linear weighers, VFFS and the packaging systems for solid materials primary packaging, such as 10 and 14 heads and 16 heads and 24 head intelligent modular packaging weighers, 2 heads and 4 heads linear packing weighers, auto online weight-checking machines, metal detectors, bagging machines, fastback conveyors etc. and the complete turn-key packaging system solutions.
As one of the leading weighing solution manufacturers in China, we are committed to the business philosophy of quality transfer value. Based on years of industry experience in practicing and developing, we provide the customers with a complete weighing solution and high quality products and services, and now we have won the respect and trust from more and more home and aboard agents and end users.
If you have any question or suggestion, just contact with us freely.
