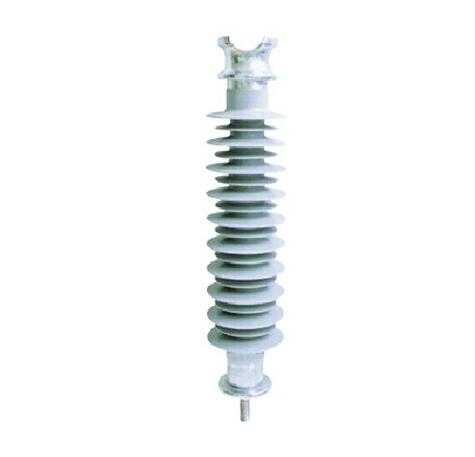

• SMICO Cheap Bulk Products Glass Fiber Epoxide Resin Composite Insulator

SMICO Cheap Bulk Products Glass Fiber Epoxide Resin Composite Insulator

Function: Simple Installation,Safe Use,Cheap; Color: Grey,Customized; Package: Standard Case; Company: Manufacturer;

Product Details

Quick Details

Description

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: SMICO
  • Model Number: FPQ-36/12.5
  • Type: Insulator
  • Material: Fiberglass, Glass fiber epoxide resin
  • Application: High Voltage
  • Rated Voltage: 36KV, 36KV
  • Tensile Strength: 12.5KN
  • Name: Composite Insulator
  • Rated mechanical bending load: 12.5KN
  • OEM: Provided
  • Certificate: CE ROHS ISO9001
  • Function: Simple Installation,Safe Use,Cheap
  • Color: Grey,Customized
  • Package: Standard Case
  • Company: Manufacturer



duct Model

Rated Voltage

(KV)

Rated mechanical bending load (KV)

Structure Height

H.(mm)

Min.Arc distance

Li.(mm)

Min.creepage distance

Lc.(mm)

Diameter of shed D.(mm)

Lightning impulse withstand voltage

(peak)(KV)

P.F.1min wet withstand voltage (Virture value)(KV)

FZSW-24/6

24

6

 315

200

450

120/100

145

 65

FPQ2-

24/4

24

4

 280

160

665

130/100

145

 65

FZSW-24/4

24

4

 305

220

640

120/100

145

 65

FPQ-

24/11

24

11

 280

165

665

135/105

145

 65

FZSW-33/6

33

6

 450

 360

 900

 148/118

185

 95

FPQ-

33/10

33

10

 485

 360

 1255

 122/92

185

 95

FPQ-

33/12

33

12

 545

 380

 1485

 200

185

 95

FPQ-

36/12

36

12

580

 460

1460

140/110

185

95

FPQ-36/12.5

36

12.5

580

460

1460

140/110

185

95

SMICO Cheap Bulk Products Glass Fiber Epoxide Resin Composite Insulator
