Quick Details
Description
- Condition: New
- Application: Profile
- Plastic Processed: PVC
- Screw Design: Double-screw
- Automatic Grade: High Automatic
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: Sheng Di An (SDA)
- Model Number: SJSZ(K)
- Voltage: 220/380/415V
- Power(W): 72000w
- Dimension(L*W*H): 3200x1520x2450mm
- Weight: 4000kg
- Certification: CE ISO
- After-sales Service Provided: Engineers available to service machinery overseas
- Output: 150--280kg/h
- Screw Treatment: Nitriding
- Cooling Mold: Air Cooling
- Inverter: ABB Brand
- Motor: AC frequency converter motor
- Color: Customized
- Free Trainning: Yes
- Category: Door/Window Profile Line
- Usage: Wide Usage(Door,window,floor profile etc)
- Warranty: 1 Year
Our Design Features
Space saving & compact-sized.
Excellent plasticizing designed screw and barrel.
Easy operation with world-class inverter.
Safe and comprehensive alarm system.
Quiet running with reducing torque distribution system.
Flexible and maintenance-free air-cooling system
Application of plastic extruder :
UPVC PVC CPVC WPC PE PP door & window profiles, sheet /board/ panel , floors, door auxiliary profiles and small decoration profiles.

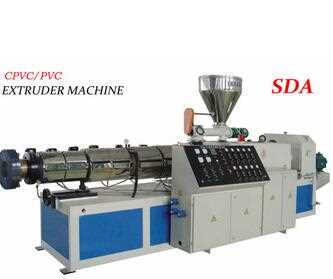

Advantages of Conical Twin Screw Window and Door Profile Plastic Extruder:
Optimized design and precisely manufactured screws make material plasticizing process more gentle, stable and even
Computer PLC control and temperature control meter are both available for customized needs
Advanced electric control and precise temperature control system
High-performance and high-strength reduction and distribution system
Failure alert by sections, easy for trouble shooting
Lower power consumption
1. Model SJSZ series conical twin screw extruder is a kind of special equipment for extruding PVC PP PE ABS PPR compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC PP PE ABS PPR plastic pipe, profile, plate material, sheet material, bar material and granulation.
2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.
3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.
4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.
6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.
Shanghai Sheng Di An Machinery Co., Ltd is a professional manufacturer of plastic extruder machinery in China.Our hot-sale products are the plastic extruding machines with cone-shaped screws, parallel twin screws, single screw and the whole prodution line,which are widely used in producing PVC profiles and PE/CPVC pipes.
We have an excellent technical team with more than 20 years' experience in extruding industry.Modern design and quality control is always what we focus on.Our factory is located in Shanghai with convenient transportation access.Our machines are sold well all over China, Southeast Asia, Middle-east, South Africa, Russia and Europe Union countries.
We can provide "One-stop service, Total solution" to customers, including plastic productin line and material,especiallly the CPVC compound for producing CPVC pipes and fittings.After sales including remote resistance and equipment maintenance is also provided as our core service.
We are always dedicated to supplying quality products and perfect after sale services to ensure customers' benefits. Our quality policy is "Exquisite Design, Package Selection, Meticulous Manufacture, and Excellent Service".
