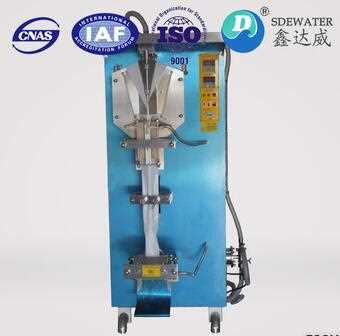

Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Beverage
- Packaging Type: Bags, Pouch
- Packaging Material: Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V/380V
- Power: 1.6KW
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: ShineDew
- Model Number: SD-500A
- Dimension(L*W*H): 880*760*1800mm
- Weight: 300kgs
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- Production Capacity: 2000-2200(pouch/h)
(1)Technical Parameters
|
No.
|
Model
|
SD-500A
|
|
1
|
Production capacity
|
2000-2200(pouch/h)
|
|
2
|
filling volume
|
50-500(ml)
|
|
3
|
power
|
220V/380V 1.6 KW
|
|
4
|
film width
|
100-320(mm)
|
|
5
|
weight
|
300(kg)
|
|
6
|
size
|
880×760×1800(mm)
|
(2)Functions and Characteristics
1. This series machine widely used to pack milk,soybean milk,sauce,vinegar,yellow wine,all kind of drink with film. The production is beauty and fastness, the machine adopts stainless steel shell, and the sanitation is guaranteed.
2. The whole process can be accomplished automatically, such as ultraviolet sterilization,bag figuration,date printing,quantitative filling,enveloping,cutting,counting, and so on. The temperature of heat-sealing is controlled automatically.
3. It can with glasses cover, ribbon coder and UV sterilizer.
(3)Shine Dew Products catalog
1. Reverse osmosis water purification equipment
2. Ultra filtration systems for mineral water and spring water
3. Auto water filling machines for 3/5 gallon bucket and small bottle (0.35-1.5L)
4. Packaging machines, like labeling machines and date printing machines
5. Bottle blowing machines for small PET bottles
6. Make budget for customers; building water treatment factories as per clients' request
7. Factory layout design, machine installation and adjustment and operation technology training
Shenzhen Shine Dew Technology Co., Ltd. is a specialized manufacturer of drinking water treatment equipment, auto bottling machines, labeling machines and other auxiliary equipment, with more than 10 years of experience in China.
We can provide machines and services as below:
1. Reverse osmosis water purification equipment
2. Ultra filtration systems for mineral water and spring water
3. Auto water filling machines for 3/5 gallon bucket and small bottle (0.35-1.5L)
4. Packaging machines, like labeling machines and date printing machines
5. Bottle blowing machines for small PET bottles
6. Make budget for customers; building water treatment factories as per clients' request
7. Factory layout design, machine installation and adjustment and operation technology training
With more than 10 years' experience in water treatment industry, we have exported our machines to Central and South America, Africa, the Middle East and Southeast Asia. Furthermore, we have completed many turnkey projects of water treatment factories for our customers from the above-mentioned regions. Moreover, we can also provide turnkey services for water bottling plants and beverage production plants.
Our goal is to assist our customers to provide healthy water for human beings. We sincerely hope to develop together with our customers in the field of water treatment industry. We welcome your contact via email, telephone and fax. We will always do our best to serve you.
