- Place of Origin: Hebei, China (Mainland)
- Brand Name: Tianwei
- Model Number: SCB10
- Usage: Power
- Phase: Three
- Coil Structure: crossover coil
- Coil Number: three
- Standard: IEC60076
- Certification: CQC
- Type: Ventilated dry-type transformers
- Rated capacity: 30-3000kva
- Rated voltage: 10kv±2*2.5%
- Material: Copper
- Connection symbol: Y,yn0 D,yn11
- Impedance voltage: 4.0%
- Color: Customized
- Size: Customized
|
Name
|

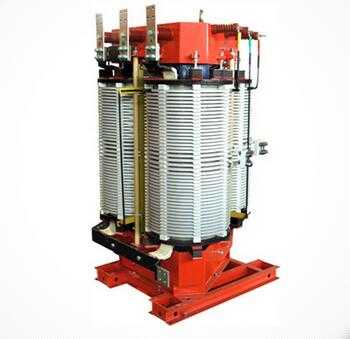

Ventilated dry-type transformers
|
|
Capacity range
|
30-16000KVA
|
|
Voltage class
|
10KV,35KV
|
|
Volt-regulation means
|
no-excitation volt-ragulation or on-load volt-regulation.
|
|
Tapping range
|
+/-5%,+/-2*2.5%.+/-4*2.5%
|
|
Frequency
|
50 or 60Hz
|
|
Number of phase
|
three or single phase
|
|
Coupling group tab
|
Yyn0,Dyn 11 or others
|
|
Highest temperature-rise
|
100K.
|
|
Cooling method
|
self-cooling(AN) of forced air cooling(AF)
|
|
Protection Class
|
IP00,IP20,1P23
|
|
Insulation class
|
F
|
Short electrical impedance:
standard impedance (refer to performance data)
The altitude is supposed to be lower than 1000m, the ambient temperature is lower than 40centigrade, the corresponding rating regulation is suggested to be done according to standard provided beyond above operation condition.
Insulation level:
1.The power frequency withstand voltage of 10KV class product is 35KV, lightning impulse voltage is 75kv
2.The power frequency withstand voltage of 20KV class product is 50KV, lightning impulse voltage is 125kv
1. High Reliability By adopting the special VPI (vacuum pressure impregnation) technology and excellent NOMEX® insulation paper, the product shows good overall temperature and humidity resistance as the compact NOMEX® insulation paper still keeps 90% of dielectric strength under complete drying when the humidity is 95%, and good radiation resistance as the product still has original electrical performance and mechanical property in the event of 800 Mrad ionizing radiation.
2. Strong Overload Capacity Because of using NOMEX®paper as a major insulation material, the product has large heat-resistant margin. NOMEX® paper belongs to C-class insulation, and can work safely and stably under 220℃ for a long term. Designed as H-class insulation, the product’s maximum operation temperature is 180℃, therefore, 40℃ heat-resistant margin will ensure the transformer to work safely even under the circumstances of higher air temperature, more harmonic components and short running beyond installed capacity.
3. Good Environmental Protection, Low Noise NOMEX® paper will endure a short running at 350℃, and cannot soften, fuse and support combustion at 250℃. It will not send out toxic or corrosive gas even at the temperature of 750℃, and never embrittle at an extremely low temperature. The iron core is made out of imported high-quality oriented silicon sheet under optimized design, so the noise will be controlled within 48dB, and the environmental performance is excellent.
4. Good Electrical Performance and Small Partial Discharge
We have high quality transformer. We are the partner of Tianwei, which is one of the biggest and most advanced transformers manufactures. We can provide oil and dry type transformer. All of them can be customized.
We have a profession team. Our team was composed by 40 people. More than 50% are accounted for bachelor degree and above.
We have convenient conditions in transportation. Our company is located in the south of Beijing. And we also near to Tianjin port.
We will adjust the performance and structure of the products according to the needs of customers, and try our best to meet customers.
We respected the value of "integrity, attention, modest, sharing view",pursuit of the supremacy of customers,care staff,share the successful experience.
