NO.
|
Description
|
QTY
|
Remark
|
|
|

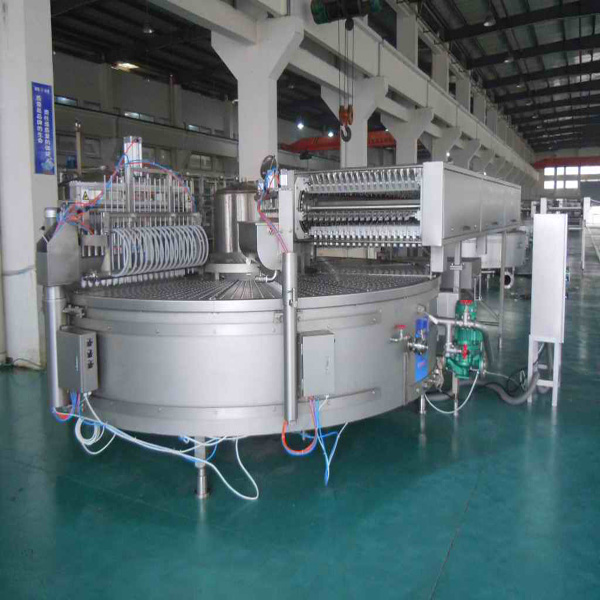

RHS-6 Stick Ice Cream Machine
|
1set
|
7000-8000pcs/h
|
|
1.0
|
Machine body unit
|
1set
|
.jpg)
|
|
1.01
|
Machine is made by Whole SS304
|
|
|
1.03
|
1 set Pump (defrosting)
Defrosting by electrical or steam not confirmed
|
|
1.1
|

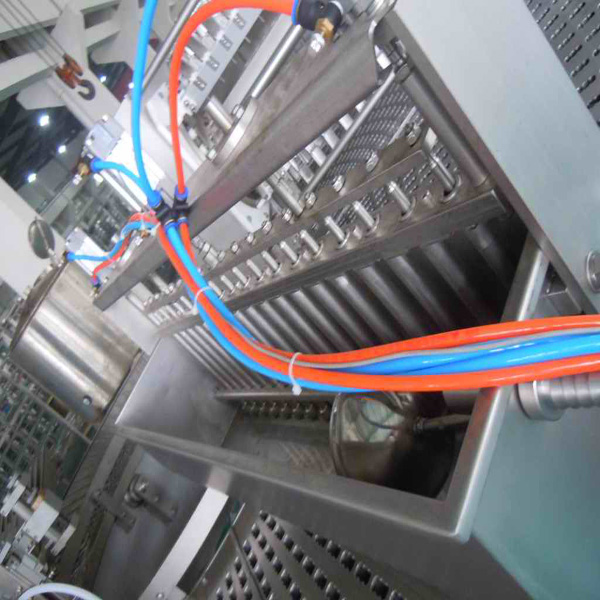

Ice water filling unit
|
1set
|
.jpg)
|
1.11
|
For liquid water ice only
|
|
|
1.12
|
Control by PLC, operated pneumatically
|
|
|
1.13
|
Stainless steel hopper for one colour
|
|
|
1.14
|
Level control by ball cock
|
|
|
|
|
|
|
|
1.2
|

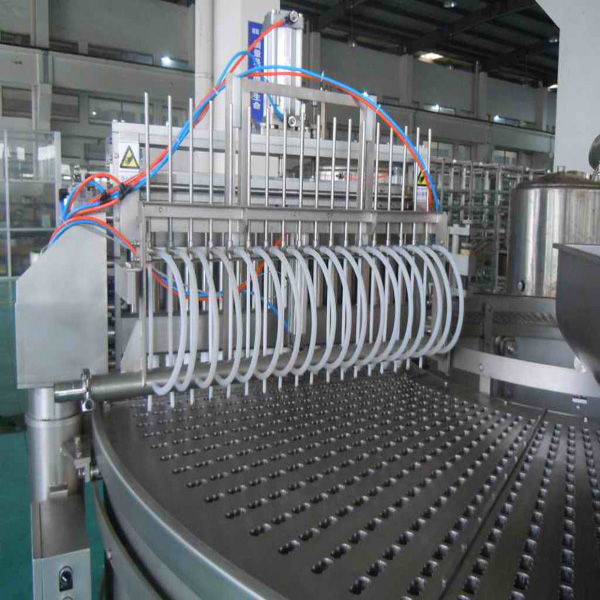

Sucking unit
|
1set
|
.jpg) |
|
1.21
|
For shell& core products
|
|
|
1.22
|
Control by PLC, operated pneumatically
|
|
|
1.23
|
Stainless steel
|
|
|
1.24
|
Vacuum pump and Milk pump
|
|
|
|
|
|
|
|
1.3
|

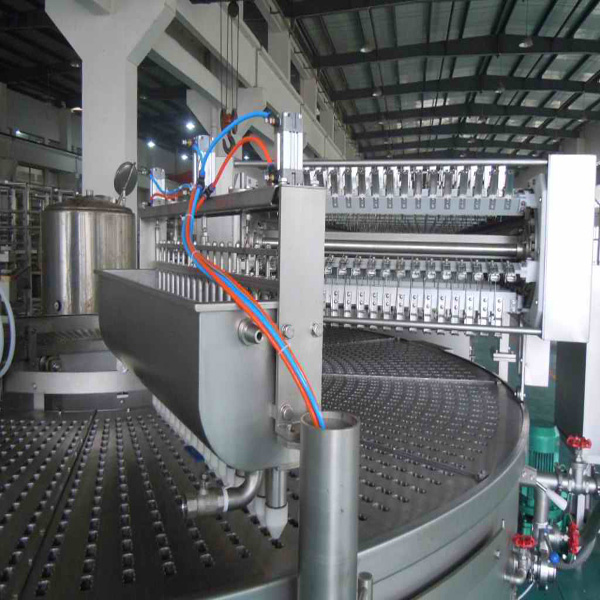

Ice cream filling unit
|
1set
|
.jpg) |
|
1.31
|
For ice cream
|
|
|
1.32
|
Control by PLC, operated pneumatically
|
|
|
1.33
|
Stainless steel hopper for one colour
|
|
|
1.34
|
agitator with electrical motor
|
|
|
1.35
|
Adjustable filling volume: 0-135cc
|
|
|
|
|
|
|
|
1.4
|

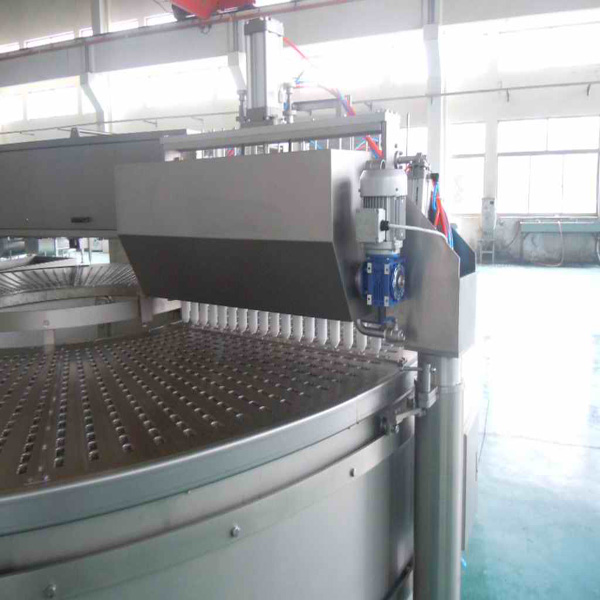

Stick insert unit
|
1set
|
.jpg)
|
|
1.41
|
For flat stick 93-140(L)*2(T)*10mm(W)
|
|
|
1.42
|
Control by PLC, operated pneumatically
|
|
|
1.43
|
Stainless steel
|
|
|
1.44
|
Manual type for feeding with bundled sticks
|
|
|
1.6
|
Cleaning unit
|
1set
|
.jpg) |
|
|
|
|
|
|
|
|
|
|
|
1.7
|
Mould
|
1 set
|
|
|
1.71
|
Dimension: 140*44*20mm
|
|
.jpg)
|
|
1.72
|
Cavity Materiel: SS 316L welding by Robot
IF the mould dimension big will be reduce the radial row and cavity of radial row
|
|
.jpg)
|
|
|
|
|
|
1.8
|

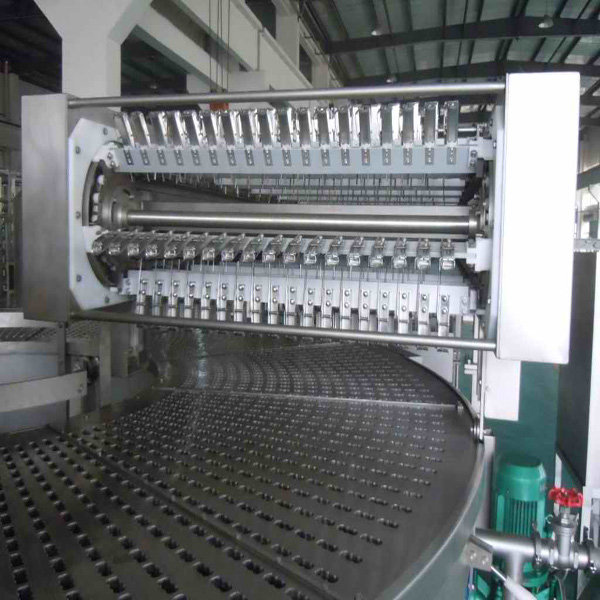

In-line extractor
|
1 set
|
.jpg) |
|
|
Independent movement for product pick-up, can be switched on/off by the Touch screen.
All up-down stations are pneumatic
|
|
|
|
|
|
|
|
|
1.81
|
Chocolate coating unit
With jacketed tank
|
1 set
|
.jpg) |
|
|
|
|
|
|
|
1.82
|
standard 3 up-down stations:
pick-up, chocolate coating, releasing;
49 extractor bars;
|
|
.jpg)
|
|
|
|
|
|
|
|
1.9
|
Electrical and Pneumatic box
|
1 set
|
.jpg) |
|
Electrical part :Siemens PLC &Touch screen, Schneider, or top brand unit
Pneumatic part :FESTO
3phase 380v 50Hz
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
