Quick Details
Description
- Type:Wrapping Machine, Wrapping Machine
- Condition:New
- Application:Apparel, Chemical, Commodity
- Packaging Type:Film, Pouch, Stand-up Pouch, foil
- Packaging Material:Paper, Plastic
- Automatic Grade:Automatic, Automatic
- Driven Type:Electric, Mechanical
- Voltage:220/380V 50Hz/60Hz
- Power:0.75kw
- Place of Origin:Henan, China (Mainland), Henan, China (Mainland)
- Brand Name:REDING
- Model Number:RDS-400A
- Dimension(L*W*H):2250*1100*1850mm
- Weight:650kg
- Certification:CE ISO
- After-sales Service Provided:Engineers available to service machinery overseas
- Working Air Pressure:0.6Mpa
- Gas Displacemint:400L/min

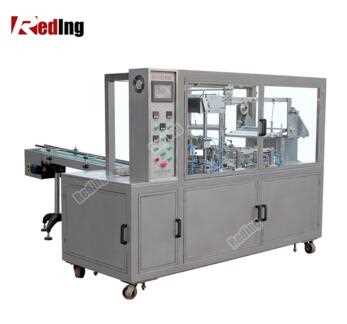

The cellophane wrapping machine is widely applicable to the automatic film packaging (with gold tear tape) of
various single boxed articles, such as the medicine, health products, foodstuff, daily cosmetics,
stationery articles, and audiovisual products.
Performance Characteristics:
1. No need to regulate the height of two work tops of the machine when the mould is replaced,
no need to assemble or dismantle the material discharge chains and discharge hopper.
Reduce the replacement time of the mould four hours to the present 30 minutes.
2. New-type double safeguard mechanisms are used, hence other spare parts will not be
damaged when the machine runs out of step without the stop of the machine.
3. Original unilateral hand swing device to prevent from shaking the machine adversely, and
the non-rotation of the handwheel during the running of the machine can secure the security
of the operator.
4. New-type double-rotary film cutting cutter can ensure no need to mill the blade during
many-year use of the machine, which overcomes the defect that the traditional stationary
single-rotary film cutting cutter was easily worn.
|
Packing Material
|
BOPP ,OPP,PVC
|
|
Capacity
|
15-60packs/min
|
|
Size
|
(L)2250×(W)1100×(H)1850mm
|
|
Electric Supply & Power
|
220V/380V 50Hz 0.75kw
|
|
Weight
|
1000kg
|
|
Heating power
|
3.5Kw
|
|
Working Air Pressure
|
0.6Mpa
|
|
Gas Displacemint
|
400L/min
|
|
Overall Dimensions
|
(L)3000×(W)800×(H)1500mm
|
