Nameplate
|
Max. cutting width
|
1680mm
|
Cutting electromotor
|
7.5kw
|
|
Max. cutting length
|
1680mm
|
Hydraumatic electromotor
|
2.2kw
|
|
Max. cutting thickness
|
130mm
|
transmission electromotor
|
0.55kw
|
|
Max. cutting pressure
|
40000N
|
weight
|
7500kg
|

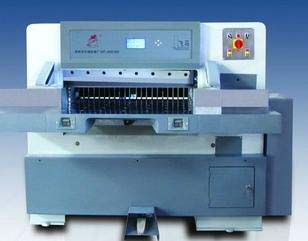

Introduction
1. Main transmission system: Adopting planar double envelop torus worm gear and worm drive system,which has many advantages,such as compact structure, high transmission efficiency, high loading capacity, low noise and low energy consumption.
2. Workbench system:Using no slots Chrome plated workbench and double guide rail structure, which enhanced the system rigidity .The vertical adjustment and parallel degree adjustment of paper pushing are independent to each other, which makes the corresponding process more simple and accurate.
3. Hydraulic system: Adopting the Growth & Pressurization oil cylinder made by German technology, and choosing hydraulic components which meet to ISO standards.
4. Convenient system: Adopting ejecting device for for cutting stick and ,safe and convenient knife replacement system.
5. Safety protection system: Adopting IR photoelectric protection and two hands operating protection.
6. Program-controlled system: (programmed control system,computer control system)Adopting international well-known brand alternating digital servo control system, equipped 10.4 inch Color LCD screen with 0.01 MM resolution, and Fault self-diagnosis function and operation mode display, which dynamic display the cutting and running conditions and give dynamic tracing.Highest paper pushing speed is 18 meters/min.And adopting powerful computer operating system, which can storage more than 200 program packages ,and no less than 20,000 Cutting datas.The memory time can lasting 30 million hours. This machine is an ideal equipments for wealth creating to those printers, packaging plant and other Soft chip demanders.
