Product Details

Quick Details

Description

I. Overview
"Anhusheng" check weigher is produced with the philosophy of "quality of the world, China's price" with high-tech, high-quality. a more complete product, more thoughtful, better applications is provided by supplier-the complete solutions provider

SIWAREX and other high-end technology is applied for this Check weigher integrating Anhusheng’s flexible control function, self-developed control systems and elaborate mechanical design. It is able to automatically weigh and sort out the products in the production line. and to achieve product classification and substandard products culling through structures such as the back-end classification and rejection.

Check weigher has a flexible mechanical structure and system configuration, it can provide a lot of options and accessories according to customer needs, and provide multi-range products to choose from.

Device Features:
1, high-precision weighing control: two tables and SIWAREX weighing module optional
2, multi-weighing zone settings, parameter setting and multi-product storage, comprehensive statistical functions
3, user-friendly interactive interface, simple operation, buttons, touch screen operation Optional
4, high-precision weighing sensor: optional digital and analog
5, the perfect functional design: sorting and removing features optional accessories;
6, all stainless steel construction, sealed design, construction to meet the food, pharmaceutical grade demand
7, weighing reproducible, easy calibration
8, AC motor control belt, adjustable speed, well-known brands of electrical components
9 complete portfolio of solutions and products line: can be equipped with metal detector, X-ray machine to achieve the strict quality checks
10, rich reporting capabilities, Packing each district, each district of the total, the number of qualified, qualified total, mean, standard deviation and total number and total accumulated.

2. solution
2.1 customer requirement
2.2、supply scope and technical specification
2.2.1system components and fuction

System integtation	Technical introduction
Automatic feeding vibration plate	Can accommodate thousands of products
	belt conveyor , send the product to weigh area
Conveying	counts through the photoelectric sensor ;
	adjustable speed, length, width, based on product options;
Dynamic weighing	weighing sensor Optional: digital, analog ; range based on product options
	belt conveyors , continuous load , speed adjustable
Defective products rejecting(optional)	variety of exclusion Optional: inflatable type, pusher , lever -type
	Fast pneumatic remove the mechanical structure , the action fast and flexible
Product sorting(optional)		Set the export classification number according to product categories
		generally use lever -type classification
	Mitsubishi PLC controller : fast and accurate data storage and movement control
	SIWAREX series weighing module : high-precision , high-speed weighing conversion module
Electric control	AC motor controlled by Mitsubishi PLC control the belt speed ;
	qualified products , alarm indication , system failure alarm , operating instructions
	centralized control electrical box , the size of the optional
	Digital Input / Output : Optional quantity, movement and control equipment
	Communication Interface : RS485 interface, optional PROFIBUS protocol interface
	operation screen : touch- and touch- selectable, selectable size , color
Interface operation	Optional PC control operating functions
	Optional data printing capabilities
	historical trend data queries optional
Automatic reframing	When the number of qualified products reaches the preset number , Reframing Reframing organizations perform automatic actions

"Anhusheng" check weigher systems include load cells and mounting modules, field wiring box and weighing signal cables. "Anhusheng" check weigher applies 32 CPU, 16-bit AD converter.

LCD SCREEN, English menu. With weighing, setting, Automatic zero and span calibration, operation / alarm display.

Technical parameter：

Model	EJH-W220
Weighing range	10-1000g
Weighing accuracy	± 0.5g
Weighing belt (can be customized)	Width: 220mm; Length: 350mm
Display Resolution
Sorting speed	60-120 packs / min
Belt speed	20-50 m / min
Conveyor height above ground	750mm ± 50mm (need confirmation)
Transport direction	From left to right for the user interface
Motor Power	AC 220 V (volatility +10%, -15%, 50/60 Hz)
Operating Temperature	From 0 ° C to 40 ° C
Humidity	90% relative humidity (non-condensing)
Part of the material for the scale body	304 stainless steel
Excluding way	Turn plate removed,excluded putter,arm trimming,blowing remove

Company Profile

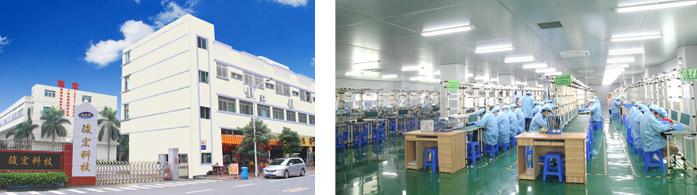

JUNHONG ELETRONIC & TECHNOLOGY CO. LTD is a leading Manufacture,focuses on metal detector technology in Dongguan City,China, Start marketing the metal detectors and related products in 2005 Years. we have more than 7years experience to research ,design and manufacutre different kinds of metal detectors to various customers home and abroad .
our mainly product Includes walk through metal detectors, hand held metal detectors, Conveyor belt food metal detectors, Garment needle detectors , gold detectors, x ray machine and other public security equipments for industry filed .
we have a good raw materials supply chains that can make us to offer a high quality product with competitive price. . we past the ISO9001 Standards system and get CE approvel, all our products are strictly according ISO9001 standard to manufactured, controlled & inspected .

JUNHONG is a Non-Governmental -run science & Technology Enterprise authorized by the government. we have professional team in development, testing, inspection and after sales. We can make a good solution to you within 24hours.
Depend on our good quality, competitive price and experienced team , , we won a good reputation from the worldwide. We are always here for you to care about your security.
