• Piston-typed Mobile Milking Machine

Piston-typed Mobile Milking Machine

Type YDH-I (Y-001)and Type YDH-II(Y-002) Please contact us:wangyuhua0321@163.com

Product Details

Quick Details

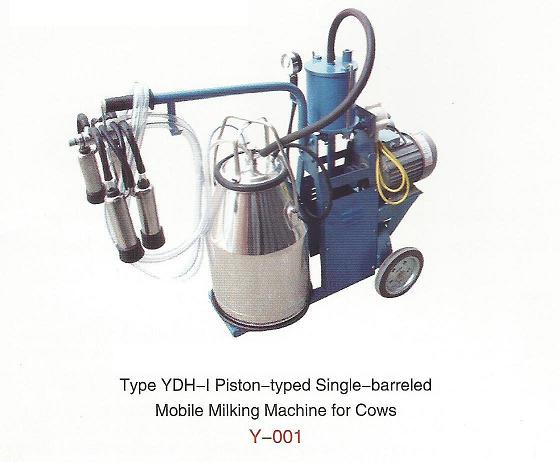

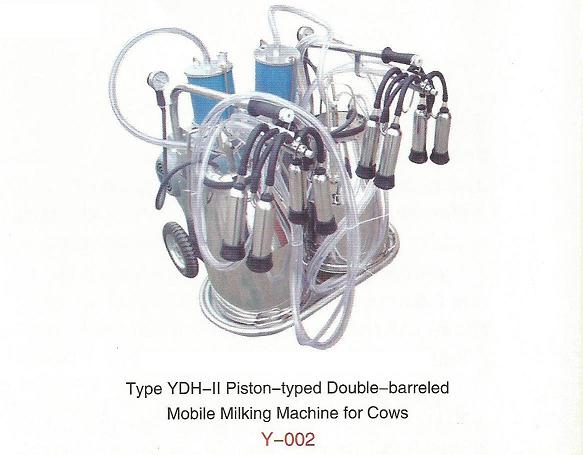

According to the number of barrels used, Piston-typed Mobile Milking Machine can be divided into two categories, they are Single-barrel Type (Type YDH-I) and Double-barrel Type (Type YDH-II).With unique design, easy operation, easy maintenance, it can lower utility costs; by milking soft with stable vacuum, it will not hurt the nipple; milk cup group is with a transparent tube, so, the operator can observe the nipples of cows when milking.

 After years of production and use and constant technological improvements, it can meet the actual demand for the majority of users. The latest products meet international standards in design and manufacturing. It is not only suitable for the individual cattle specialized households, but also provides a selection for large-scale specialized dairy farms.


Main Performance and Technology Parameters

Item model



Operation Vacuum Degree

0.04-0.05 MPa(adjustable)

0.04-0.05 MPa(adjustable)

Pulsation Times

64 times per minute

64 times per minute

Power Fitted




110V,220V,240V or 380V

110V,220V,240V or 380V

Motor Speed

1440 rpm per minute

1440 rpm per minute

The Number of Milking Cattle Per Hour

10-12 cows per hour

20-24 cows per hour

The Number of Stainless Steel Milk Bucket

One(capacity of 25kg)

Two (each of capacity of 25kg)

Employees Needed When Milking



The Number of Milking Cup Group

One set

Two sets

Company Profile

Zibo lukin machinery factory is a collection of livestock machinery production, management, sales for the integration of comprehensive factories, has the rich production experience and strong technical force, reliable test method, advanced technology and equipment, and that the quality of the products more reliable, from the customer high praise, products are sold throughout the country, our factory is specialized in the production and business operation stainless steel milk barrels, imported transparent milk barrels, milk cup piston milking machine, vacuum pump type milking machine, set milk ware, measuring bottle, pipe bucket type milking machine, herringbone type milking hall, herringbone paratactic type milking hall design and installation, and sales of transparent tube, various parts of rubber inside. The adhering to the "customer is god" business philosophy, with first-class technology, perfect after-sales service, lets users worry-free.

    Adhere to the quality strives for the survival, to the prestige strives for the development, the most outstanding products, the most preferential price, the most efficient service, from all walks of life friend, altogether will create magnificently!
